MCM6323A

Features: • Single 3.3 V ± 0.3 V Power Supply• Fast Access Time: 10, 12, 15 ns• Equal Address and Chip Enable Access Time• All Inputs and Outputs are TTL Compatible• Data Byte Control• Fully Static Operation• Power Operation: 140/135/130 mA Maximum, Active...

product image

MCM6323A Picture
See larger image
SeekIC No. : 004417817 Detail

MCM6323A: Features: • Single 3.3 V ± 0.3 V Power Supply• Fast Access Time: 10, 12, 15 ns• Equal Address and Chip Enable Access Time• All Inputs and Outputs are TTL Compatible• Da...

MCM6323A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCM6323A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3 V ± 0.3 V Power Supply
• Fast Access Time: 10, 12, 15 ns
• Equal Address and Chip Enable Access Time
• All Inputs and Outputs are TTL Compatible
• Data Byte Control
• Fully Static Operation
• Power Operation: 140/135/130 mA Maximum, Active AC
• Industrial Temperature Option: 40 to + 85°C Part Number: SCM6323AYJ10A

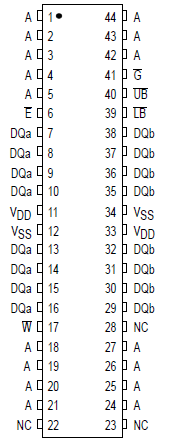

Pinout

Connection Diagram


Specifications

Logic Input Timing Measurement Reference Level . . . . . . . . 1.50 V
Logic Input Pulse Levels . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 3.0 V
Input Rise/Fall Time . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . 2 ns
Output Timing Reference Level . . . . . . . . . . . . . . . . . . . . . . . 1.50 V


Description

The MCM6323A is a 1,048,576 bit static random access memory organized as 65,536 words of 16 bits. Static design eliminates the need for external clocks or timing strobes; CMOS circuitry reduces power consumption and provides for greater reliability.

The MCM6323A is equipped with chip enable (E), write enable (W), and output enable (G) pins, allowing for greater system flexibility and eliminating bus contention problems. Separate byte enable controls (LB and UB) allow individual bytes to be written and read. LB controls the 8 DQa bits, while UB controls the 8 DQb bits.

The MCM6323A is available in a 400 mil smalloutline Jleaded (SOJ) package and a 44lead TSOP Type II package in copper leadframe for optimum printed circuit board (PCB) reliability.
