MCM62Y308

Features: • 8K x 8 Fast Access Static Memory Array• Single 5 V Power Supply - MCM62Y30817: ± 5%• Synchronous, Simultaneous Read/Write Memory Access• 50 MHz Maximum Clock Cycle Time, < 15 ns Read Access• Single Clock Operation• Separate Read/Write Address Coun...

product image

MCM62Y308 Picture
See larger image
SeekIC No. : 004417816 Detail

MCM62Y308: Features: • 8K x 8 Fast Access Static Memory Array• Single 5 V Power Supply - MCM62Y30817: ± 5%• Synchronous, Simultaneous Read/Write Memory Access• 50 MHz Maximum Clock Cycl...

MCM62Y308 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCM62Y308
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8K x 8 Fast Access Static Memory Array
• Single 5 V Power Supply - MCM62Y30817: ± 5%
• Synchronous, Simultaneous Read/Write Memory Access
• 50 MHz Maximum Clock Cycle Time, < 15 ns Read Access
• Single Clock Operation
• Separate Read/Write Address Counters with Reload Control
• Separate Up/Down Counter Control for Both Read and Write
• Separate RollOver Flag Outputs for Read and Write
• Programmable Output Enable Control (Synchronous or Asynchronous)
• Cascadable I/O Interface
• IEEE Standard 1149.1 Test Port (JTAG)
• Expand ID Register for Depth Expansion
• High Board Density SOJ Package


Pinout

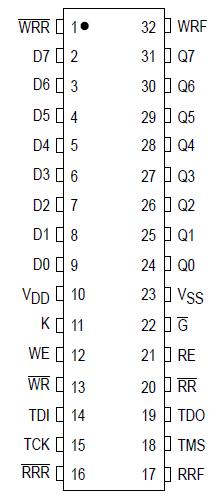

Connection Diagram


Specifications

Rating

Symbol

Value

Unit

Power Supply Voltage

VDD

0.5 to + 7.0

V

Voltage Relative to VSS

Vin,Vout

0.5 to VDD + 0.5

V

Output Current (per I/O)

Iout

±20

mA

Power Dissipation

PD

1.0

W

Temperature Under Bias

Tbias

10 to + 85

°C

Operating Temperature
TA
0 to + 70
°C
Storage Temperature

Tstg

55 to + 125

°C
