MCM6265C

Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• Fast Access Times: 12, 15, 20, 25, and 35 ns
• Equal Address and Chip Enable Access Times
• Output Enable (G ) Feature for Increased System Flexibility and to Eliminate Bus Contention Problems
• Low Power Operation: 110 150 mA Maximum AC
• Fully TTL Compatible - Three State Output

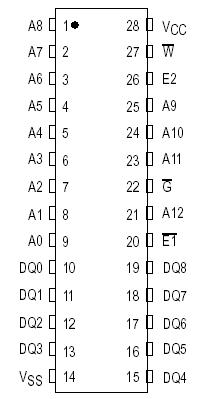

Pinout




Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage	VCC	0.5 to + 7.0	V
Voltage Relative to VSS for Any Pin Except VCC	Vin, Vout	0.5 to VCC + 0.5	V
Output Current	Iout	± 20	mA
Power Dissipation	PD	1.0	W
Temperature Under Bias	Tbias	10 to + 85
Operating Temperature	TA	0 to + 70
Storage Temperature - Plastic	Tstg	55 to + 125

Description

The MCM6265C is fabricated using Motorola's highperformance silicongate CMOS technology. Static design eliminates the need for external clocks or timing strobes, while CMOS circuitry reduces power consumption and provides for greater reliability.

This device of the MCM6265C meets JEDEC standards for functionality and pinout, and is available in plastic dualinline and plastic smalloutline Jleaded packages.
