MCM6208C

Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• Fast Access Times: 12, 15, 20, 25, and 35 ns
• Equal Address and Chip Enable Access Times
• Low Power Operation: 135 165 mA Maximum AC
• Fully TTL Compatible - ThreeState Output

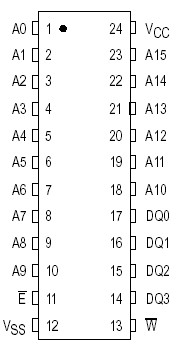

Pinout




Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage	VCC	0.5 to + 7.0	V
Voltage Relative to VSS For Any Pin Except VCC	Vin, Vout	0.5 to VCC + 0.5	V
Output Current	Iout	± 20	mA
Power Dissipation	PD	1.0	W
Temperature Under Bias	Tbias	10 to + 85
Operating Temperature	TA	0 to + 70
Storage Temperature - Plastic	Tstg	55 to + 125

Description

The MCM6208C is fabricated using Motorola's highperformance silicongate CMOS technology. Static design eliminates the need for external clocks or timing strobes, while CMOS circuitry reduces power consumption and provides for greater reliability.

This MCM6208C meets JEDEC standards for functionality and pinout, and is available in plastic dualinline and plastic smalloutline Jleaded packages.
