MC88913

Features: • Minimum Clock Input fMAX of 110MHz• TTL Compatible Positive EdgeTriggered Clock• Matched Outputs for Synchronous Applications• Outputs Source/Sink 24mA• ParttoPart Skew of Less Than 4.0ns• Guaranteed Rise and Fall Times for a Given Capacitive LoadPin...

product image

MC88913 Picture
See larger image
SeekIC No. : 004417332 Detail

MC88913: Features: • Minimum Clock Input fMAX of 110MHz• TTL Compatible Positive EdgeTriggered Clock• Matched Outputs for Synchronous Applications• Outputs Source/Sink 24mA• Par...

MC88913 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC88913
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Minimum Clock Input fMAX of 110MHz
• TTL Compatible Positive EdgeTriggered Clock
• Matched Outputs for Synchronous Applications
• Outputs Source/Sink 24mA
• ParttoPart Skew of Less Than 4.0ns
• Guaranteed Rise and Fall Times for a Given Capacitive Load

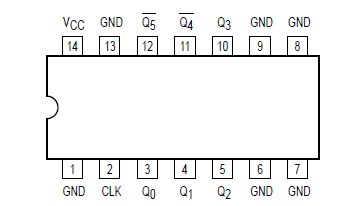

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
PD
 Power Dissipation in Still Air
Plastic Package**
SOIC Package**
750
500
MW
Tstg
 Storage Temperature
65 to +150
TL
 Lead Temperature, 1mm from Case for 10s (Plastic or SOICPackage)
260
*Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should
  be  restricted to the Recommended Operating Conditions.
** Derating: Plastic Package: 10mW/  from 65  to 125
                       SOIC Package: 7.0mW/  from 65  to 125



Description

The MC88913 is a highspeed, low power, hex dividebytwo Dtype flipflop with two inverting and four noninverting outputs that have closely matched propagation delays. With a TTL compatible buffered clock input and MC88913 is common to all flipflops, the MC88913 is ideal for use in highfrequency systems as a clock driver, providing multiple outputs that are synchronous.
