MC80F0104

• 4K Bytes On-chip FLASH
  - Endurance : 100 times
  - Retention time : 10 years

• 256 Bytes On-chip Data RAM (Included stack memory)
• Minimum Instruction Execution Time:
   - 333ns at 12MHz (NOP instruction

• Programmable I/O pins (LED direct driving can be a source and sink)
   - MC80F0204 : 18(17)
   - MC80F0104 : 14(13)

• One 8-bit Basic Interval Timer
• Four 8-bit Timer/counters (or two 16-bit Timer/counter)
• One Watchdog timer
• Two 10-bit High Speed PWM Outputs

• 10-bit A/D converter
  - MC80F0204 : 10 channels
  - MC80F0104 : 8 channels

• Two 8-bit Serial Communication Interface
   - One Serial I/O and one UART

• One Buzzer Driving port
   -488Hz ~ 250kHz@4MHz

• Four External Interrupt input ports
• On-chip POR (Power on Reset)
• Fourteen Interrupt sources
  - External input : 4
  - Timer : 6
  - A/D Conversion : 1
  - Serial Interface : 1
  - UART : 2

• Built in Noise Immunity Circuit
  - Noise Canceller
  - PFD (Power fail detector)
  - ONP (Oscillation Noise Protector)

• Operating Voltage & Frequency (MC80F0104/ 0204)
  - 2.7V ~ 5.5V (at 0.4 ~ 8MHz)
  - 4.5V ~ 5.5V (at 0.4 ~ 12MHz)

• Operating Voltage & Frequency(MC80C0104/ 0204)
   - 2.0V ~ 5.5V (at 0.4 ~ 4.2MHz)
   - 2.7V ~ 5.5V (at 0.4 ~ 8MHz)
  - 4.5V ~ 5.5V (at 0.4 ~ 12MHz)

• Operating Temperature : -40 ~ 85

• Power Saving Modes
   - STOP mode
   - SLEEP mode
   - RC-WDT mode

• Oscillator Type
   - Crystal
   - Ceramic resonator
   - External RC Oscillator (C can be omitted)
   - Internal Oscillator (4MHz/2MHz)

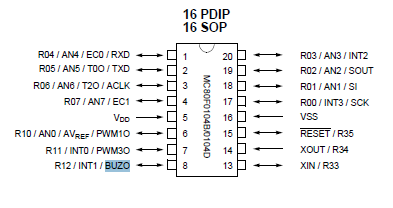

The MC80F0104/0204 is advanced CMOS 8-bit microcontroller with 4K bytes of FLASH. This is a powerful microcontroller provides a highly flexible and cost effective solution to many embedded control applications. This provides the following features : 4K bytes of FLASH, 256 bytes of RAM, 8/16-bit timer/counter, watchdog timer, 10-bit A/D converter, 8-bit Serial Input/Output, UART, buzzer driving port, 10-bit PWM output and on-chip oscillator and clock circuitry. It also has ONP, noise filter, PFD for improving noise immunity. In addition, the MC80F0104/0204 supports power saving modes to reduce power consumption.

The MC80C0104/0204 is the MASK ROM version of the MC80F0104/0204. It is fully compatible to its in function.
