MC80C0204

Features: • 4K Bytes On-chip FLASH - Endurance : 100 times - Retention time : 10 years• 256 Bytes On-chip Data RAM (Included stack memory)• Minimum Instruction Execution Time: - 333ns at 12MHz (NOP instruction• Programmable I/O pins (LED direct driving can be a source and s...

product image

MC80C0204 Picture
See larger image
SeekIC No. : 004417323 Detail

MC80C0204: Features: • 4K Bytes On-chip FLASH - Endurance : 100 times - Retention time : 10 years• 256 Bytes On-chip Data RAM (Included stack memory)• Minimum Instruction Execution Time: - 33...

MC80C0204 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC80C0204
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4K Bytes On-chip FLASH
  - Endurance : 100 times
  - Retention time : 10 years

• 256 Bytes On-chip Data RAM (Included stack memory)
• Minimum Instruction Execution Time:
   - 333ns at 12MHz (NOP instruction

• Programmable I/O pins (LED direct driving can be a source and sink)
   - MC80F0204 : 18(17)
   - MC80F0104 : 14(13)

• One 8-bit Basic Interval Timer
• Four 8-bit Timer/counters (or two 16-bit Timer/counter)
• One Watchdog timer
• Two 10-bit High Speed PWM Outputs

• 10-bit A/D converter
  - MC80F0204 : 10 channels
  - MC80F0104 : 8 channels

• Two 8-bit Serial Communication Interface
   - One Serial I/O and one UART

• One Buzzer Driving port
   -488Hz ~ 250kHz@4MHz

• Four External Interrupt input ports
• On-chip POR (Power on Reset)
• Fourteen Interrupt sources
  - External input : 4
  - Timer : 6
  - A/D Conversion : 1
  - Serial Interface : 1
  - UART : 2

• Built in Noise Immunity Circuit
  - Noise Canceller
  - PFD (Power fail detector)
  - ONP (Oscillation Noise Protector)

• Operating Voltage & Frequency (MC80F0104/ 0204)
  - 2.7V ~ 5.5V (at 0.4 ~ 8MHz)
  - 4.5V ~ 5.5V (at 0.4 ~ 12MHz)

• Operating Voltage & Frequency(MC80C0104/ 0204)
   - 2.0V ~ 5.5V (at 0.4 ~ 4.2MHz)
   - 2.7V ~ 5.5V (at 0.4 ~ 8MHz)
  - 4.5V ~ 5.5V (at 0.4 ~ 12MHz)

• Operating Temperature : -40 ~ 85

• Power Saving Modes
   - STOP mode
   - SLEEP mode
   - RC-WDT mode

• Oscillator Type
   - Crystal
   - Ceramic resonator
   - External RC Oscillator (C can be omitted)
   - Internal Oscillator (4MHz/2MHz)




Pinout

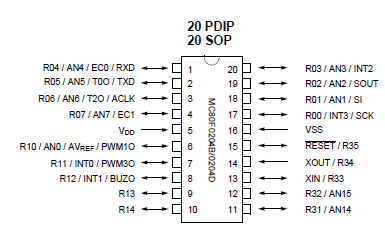

Connection Diagram


Specifications

Supply voltage ......................................................... -0.3 to +6.5 V
Storage Temperature ............................................ -65 to +150 °C
Voltage on any pin with respect to Ground (VSS)..-0.3 to VDD+0.3V
Maximum current out of VSS pin ...........................................200 mA
Maximum current into VDD pin ............................................ 100 mA
Maximum current sunk by (IOL per I/O Pin) ...........................20 mA
Maximum output current sourced by (IOH per I/O Pin............ 10 mA
Maximum current (IOL) ...................................... ................160 mA
Maximum current (IOH)........................................ ................80 mA

Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The MC80F0104/0204 is advanced CMOS 8-bit microcontroller with 4K bytes of FLASH. MC80C0204 is a powerful microcontroller provides a highly flexible and cost effective solution to many embedded control applications. This provides the following features : 4K bytes of FLASH, 256 bytes of RAM, 8/16-bit timer/counter, watchdog timer, 10-bit A/D converter, 8-bit Serial Input/Output, UART, buzzer driving port, 10-bit PWM output and on-chip oscillator and clock circuitry. MC80C0204 also has ONP, noise filter, PFD for improving noise immunity. In addition, the MC80F0104/0204 supports power saving modes to reduce power consumption.

The MC80C0104/0204 is the MASK ROM version of the MC80F0104/0204. It is fully compatible to the MC80F0104/0204
in function.
