MC80C0448

Features: • 24/32K/48K Bytes On-chip ROM• FLASH memory Endurance : 100 cycles Data retention time : 10 years• 1.5K Bytes of On-chip Data RAM (Included stack memory)• Minimum Instruction Execution Time -333ns at 12MHz (NOP instruction)• 57 I/O Ports at 64 pin• ...

product image

MC80C0448 Picture
See larger image
SeekIC No. : 004417326 Detail

MC80C0448: Features: • 24/32K/48K Bytes On-chip ROM• FLASH memory Endurance : 100 cycles Data retention time : 10 years• 1.5K Bytes of On-chip Data RAM (Included stack memory)• Minimu...

MC80C0448 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC80C0448
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 24/32K/48K Bytes On-chip ROM
• FLASH memory Endurance : 100 cycles Data retention time : 10 years
• 1.5K Bytes of On-chip Data RAM (Included stack memory)
• Minimum Instruction Execution Time -333ns at 12MHz (NOP instruction)
• 57 I/O Ports at 64 pin
• One 8-bit Basic Interval Timer
• Four 8-bit and one 16-bit Timer/Event counter (or three 16-bit Timer/Event counter)
• One Watchdog timer
• One Watch timer
• Two 10-bit PWM
• Three 8-bit Serial Communication Interface -One SIO and two UART
• One Buzzer Driving port -488Hz ~ 250kHz@4MHz
• 16 channel 10-bit A/D converter
• Four External Interrupt input ports
• Fifteen Interrupt sources -Basic Interval Timer(1), External input(4)



Pinout

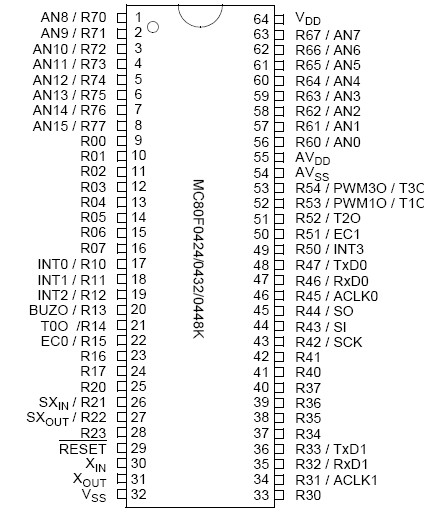

Connection Diagram


Description

The MC80F0424/0432/0448 is advanced CMOS 8-bit microcontroller with 48K/32K/24K bytes of ROM(FLASH). MC80C0448 is a powerful microcontroller hich provides a highly flexible and cost effective solution to many embedded control applications.MC80C0448 provides the following tandard features : 24K/32K/48K bytes of ROM(FLASH), 1.5K bytes of RAM, 8/16-bit timer/counter, watchdog timer, watch imer, 10-bit A/D converter, 8-bit Serial Input/Output, UART, 6-bit buzzer driving port, 10-bit PWM output and on-chip oscillator and lock circuitry. MC80C0448 also has 8 high current I/O pins with typical 20mA. In addition, the MC80F0424/0432/0448 supports power saving modes reduce power consumption
