MC12439

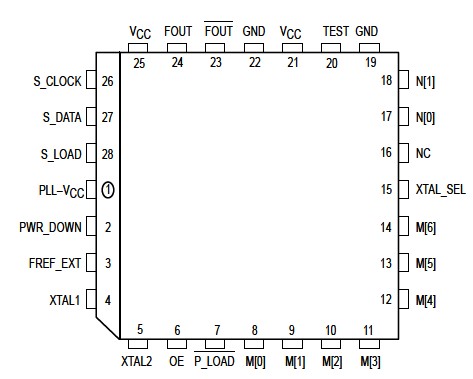

The internal oscillator MC12439 uses the external quartz crystal as the basis of its frequency reference. The output of the  eference oscillator is sent directly to the phase detector. With a 16.66MHz crystal, this provides a reference frequency of 16.66MHz. Although this data sheet illustrates functionality only for a 16MHz and 16.66MHz crystal, any crystal in the 1020MHz range can be used. In addition to the crystal, an LVCMOS input can also be used as the PLL reference. The reference MC12439 is selected via the XTAL_SEL input pin.

The VCO within the PLL operates over a range of 400 to 800MHz. MC12439's output is scaled by a divider that is configured by either the serial or parallel interfaces. The output of this loop divider is also applied to the phase detector.

The phase detector and loop filter of MC12439 attempt to force the VCO output frequency to be M times the reference frequency by adjusting the VCO control voltage. Note that for some values of M (either too high or too low) the PLL will not achieve loop lock.

The output of the VCO MC12439 is also passed through an output divider before being sent to the PECL output driver. This output divider is configured through either the serial or the parallel interfaces, and can provide one of four division ratios (1, 2, 4, or 8). This divider extends performance of the part while providing a 50% duty cycle.

The output driver MC12439 is driven differentially from the output divider, and is capable of driving a pair of transmission lines terminated in 50W to Vcc 2.0.

The configuration logic has two sections: serial and parallel. The parallel interface of MC12439 uses the values at the M[6:0] and N[1:0] inputs to configure the internal counters. Normally, on system reset, the P_LOAD input is held LOW until sometime after power becomes valid. On the LOWtoHIGH transition of P_LOAD, the parallel inputs of MC12439 are captured. The parallel interface has priority over the serial interface. Internal pullup resistors are provided on the M[6:0] and N[1:0] inputs to reduce component count in the application of the chip.

The serial interface centers on a twelve bit shift register. The shift register of MC12439 shifts once per rising edge of the S_CLOCK input. The serial input S_DATA must meet setup and hold timing as specified in the AC Characteristics section of this document. The configuration of MC12439 latches will capture the value of the shift register on the HIGHtoLOW edge of the S_LOAD input. See the programming section for more information.

The TEST output of MC12439 reflects various internal node values, and is controlled by the T[2:0] bits in the serial data stream. See the programming section for more information.

The PWR_DOWN pin, when asserted, will synchronously divide the FOUT by 16. The power down sequence is clocked by the PLL reference clock, thereby causing the frequency reduction to happen relatively slowly. Upon deassertion of the PWR_DOWN pin, the FOUT input will step back up to its programmed frequency in four discrete increments.
