MBM29PL3200BE

Features: • 0.23 m Process Technology• Single 3.0 V read, program and erase Minimized system level power requirements• High Performance Page Mode 25 ns maximum page access time (70 ns random access time)• 8 words Page ( ´ 16) /4 double words ( ´ 32) size• ...

product image

MBM29PL3200BE Picture
See larger image
SeekIC No. : 004414189 Detail

MBM29PL3200BE: Features: • 0.23 m Process Technology• Single 3.0 V read, program and erase Minimized system level power requirements• High Performance Page Mode 25 ns maximum page access time (70...

MBM29PL3200BE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MBM29PL3200BE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.23 m Process Technology
• Single 3.0 V read, program and erase Minimized system level power requirements
• High Performance Page Mode 25 ns maximum page access time (70 ns random access time)
• 8 words Page ( ´ 16) /4 double words ( ´ 32) size
• Compatible with JEDEC-standard commands Uses same software commands as E2PROMs
• Compatible with JEDEC-standard world-wide pinouts 90-pin SSOP (Package suffix : PFV) 84-ball FBGA (Package suffix : PBT)
• Minimum 100,000 program/erase cycles
• Sector erase architecture


Pinout

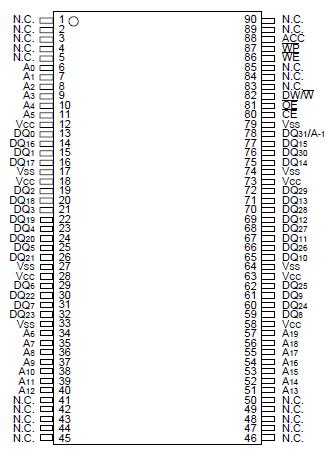

Connection Diagram


Description

The MBM29PL3200BE is 32 M-bit, 3.0 V-only Page mode Flash memory organized as 2 M words of 16 bits
each or 1 M words of 32 bits each. The device is offered in 90-pin SSOP and 84-ball FBGA packages. This device
is designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC
are not required for write or erase operations. MBM29PL3200BE can also be reprogrammed in standard EPROM  ogrammers.
