Features: • 0.23 mm Process Technology• Single 3.0 V read, program and erase Minimizes system level power requirements• Compatible with JEDEC-standards Uses same software commands with single-power supply Flash• Address don't care during the command sequence• Industry...
MBM29LV652UE90: Features: • 0.23 mm Process Technology• Single 3.0 V read, program and erase Minimizes system level power requirements• Compatible with JEDEC-standards Uses same software commands ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Conditions |
Rating |
Units | |
Min |
Max | |||
Storage Temperature |
Tstg |
55 |
+125 |
°C |
Ambient Temperature with Power Applied |
TA |
40 |
+85 |
°C |
Voltage with Respect to Ground All Pins except A9, OE, RESET *1, *2 |
VIN, VOUT |
0.5 |
VCC+0.5 |
V |
Power Supply Voltage *1 |
VCC |
0.5 |
+4.0 |
V |
A9, OE, and RESET *1, *3 |
VIN |
0.5 |
+13.0 |
V |
WP/ACC *1, *4 |
VACC |
0.2 |
+7.0 |
V |

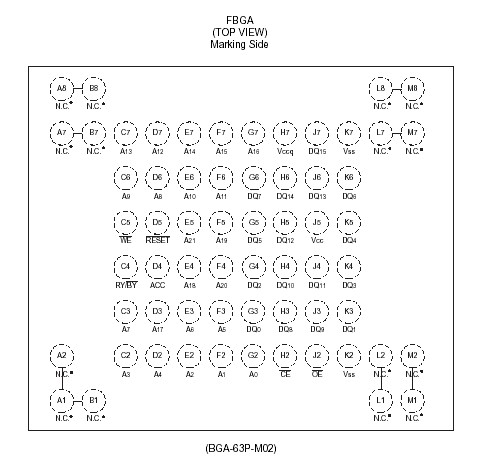

The MBM29LV652UE90 is a 64M-bit, 3.0 V-only Flash memory organized as 4M words of 16 bits each. The device is designed to MBM29LV652UE be programmed in system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase operations. MBM29LV652UE90 can also be reprogrammed in standard EPROM programmers.
To eliminate bus contention the devices have separate chip enable (CE), write enable (WE), and output enable (OE) controls.
The MBM29LV652UE90 is entirely command set compatible with JEDEC single-power-supply Flash standard. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine which controls the erase and programming circuitry. Write cycles also internally latch addresses and data needed for the programming and erase operations. Typically, each sector can be programmed and verified in about 0.5 seconds.
