MB9561A

Features: • Clock• Internal oscillator circuit and PLL clock multiplication circuit• Oscillation clock-Clock speed selectable from either the machine clock, main clock, or PLL clock. The main clock is the oscillation-clock divided into 2 (0.5 MHz to 8 MHz for a 1 MHz to 16 MHz ba...

product image

MB9561A Picture
See larger image
SeekIC No. : 004413932 Detail

MB9561A: Features: • Clock• Internal oscillator circuit and PLL clock multiplication circuit• Oscillation clock-Clock speed selectable from either the machine clock, main clock, or PLL cloc...

MB9561A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB9561A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Clock
• Internal oscillator circuit and PLL clock multiplication circuit
• Oscillation clock
-Clock speed selectable from either the machine clock, main clock, or PLL clock. The main clock is the oscillation
-clock divided into 2 (0.5 MHz to 8 MHz for a 1 MHz to 16 MHz base oscillation) . The PLL clock is the oscillation
-clock multiplied by one to four (4 MHz to 16 MHz for a 4 MHz base oscillation) .
• Minimum instruction execution time : 62.5 ns (for oscillation = 4 MHz, PLL clock setting = ´ 4, VCC = 5.0 V)
• Maximum CPU memory space : 16 MB
• 24-bit addressing
• Bank addressing


Pinout

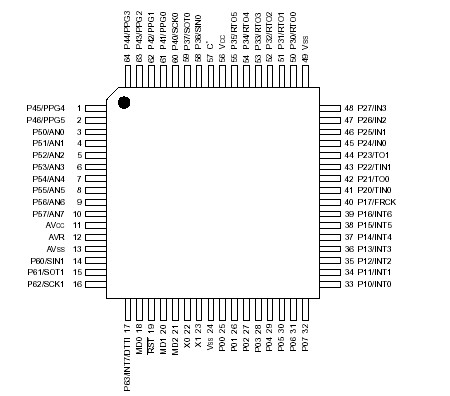

Connection Diagram




Description

The MB9561A series is a general-purpose 16-bit microcontroller designed for industrial, OA, and process control applications that require high-speed real-time processing. The device features a multi-function timer able to output a programmable waveform.

The microcontroller instruction set is based on the same AT architecture as the F2MC-8L and F2MC-16L families with additional instructions for high-level languages, extended addressing modes, enhanced signed multiplication and division instructions, and a complete range of bit manipulation instructions. The MB9561A has a 32-bit accumulator for processing long word (32-bit) data.
