MB95100B

• F²MC-8FX CPU core
   Instruction set optimized for controllers
• Multiplication and division instructions
• 16-bit arithmetic operations
• Bit test branch instruction
• Bit manipulation instructions etc.
• Clock
• Main clock
• Main PLL clock
• Sub clock (for dual clock product)
• Sub PLL clock (for dual clock product)
• Timer
• 8/16-bit compound timer × 2 channels
• 16-bit reload timer
• 8/16-bit PPG × 2 channels
• 16-bit PPG × 2 channels
• Timebase timer
• Watch prescaler (for dual clock product)
• FRAM
   2K bytes FRAM is loaded (MB95R107B/MB95D108BS/MB95D108BW only)
• LIN-UART
• Full duplex double buffer
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• UART/SIO
• Full duplex double buffer
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• I²C*
   Built-in wake-up function
• External interrupt
• Interrupt by edge detection (rising, falling, or both edges can be selected)
• Can be used to recover from low-power consumption (standby) modes.
• 8/10-bit A/D converter
   8-bit or 10-bit resolution can be selected.
• Low-power consumption (standby) mode
• Stop mode
• Sleep mode
• Watch mode (for dual clock product)
• Timebase timer mode

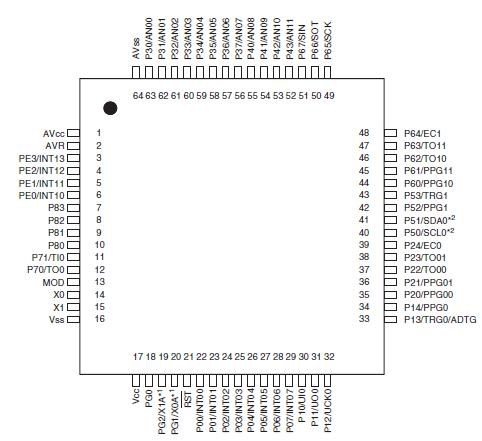

• I/O port
• The number of maximum ports
• Single clock product : 55 ports
• Dual clock product : 53 ports
• Port configuration
• General-purpose I/O ports (N-ch open drain)
   Other than MB95D108BS/MB95D108BW/MB95R107B : 6 ports
   MB95D108BS/MB95D108BW/MB95R107B : 4 ports
• General-purpose I/O ports (CMOS)
   Single clock product : 49 ports
   Dual clock product : 47 ports
* : Purchase of Fujitsu I2C components conveys a license under the Philips I2C Patent Rights to use, these components in an I2C system provided that the system conforms to the I2C Standard Specification as defined by Philips.

*1 : The parameter is based on AVSS = VSS = 0.0 V.
*2 : Apply equal potential to AVCC and VCC. AVR should not exceed AVCC + 0.3 V.
*3 : VI1 and Vo should not exceed VCC + 0.3 V. VI1 must not exceed the rating voltage. However, if the maximum current to/from an input is limited by some means with external components, the ICLAMP rating supersedes the VI1 rating.
*4 : Applicable to pins : P00 to P07, P10 to P14, P20 to P24, P30 to P37, P40 to P43, P52, P53, P70, P71,PE0 to PE3, PG0
• Use within recommended operating conditions.
• Use at DC voltage (current).
• The + B signal is an input signal that exceeds VCC voltage. The + B signal should always be applied a limiting resistance placed between the + B signal and the microcontroller.
• The value of the limiting resistance should be set so that when the + B signal is applied the input current to the microcontroller pin does not exceed rated values, either instantaneously or for prolonged periods.
• Note that when the microcontroller drive current is low, such as in the power saving modes, the +B input potential may pass through the protective diode and increase the potential at the VCC pin, and this affects other devices.
• Note that if the + B signal is inputted when the microcontroller power supply is off (not fixed at 0 V), the power supply is provided from the pins, so that incomplete operation may result.
• Note that if the + B input is applied during power-on, the power supply is provided from the pins and the resulting power supply voltage may not be sufficient to operate the power-on reset.
• Care must be taken not to leave the + B input pin open.

The MB95100B series is general-purpose, single-chip microcontrollers. In addition to a compact instruction set,the microcontrollers contain a variety of peripheral functions.
