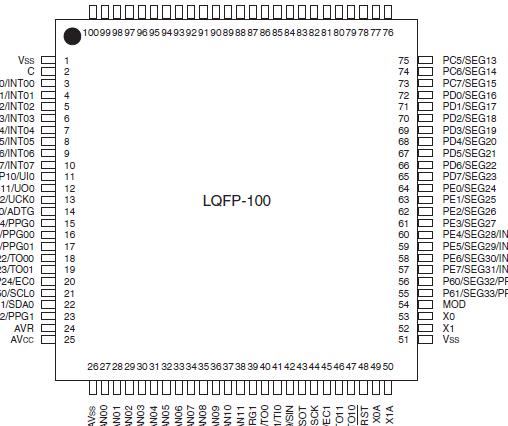

MB95120MB

• F²MC-8FX CPU core Instruction set optimized for controllers
• Multiplication and division instructions
• 16-bit arithmetic operations
• Bit test branch instruction
• Bit manipulation instructions etc.
• Clock
• Main clock
• Main PLL clock
• Sub clock
• Sub PLL clock
• Timer
• 8/16-bit compound timer × 2 channels
• Can be used to interval timer, PWC timer, PWM timer and input capture.
• 16-bit reload timer × 1 channel
• 8/16-bit PPG × 2 channels
• 16-bit PPG × 2 channels
• Timebase timer × 1 channel
• Watch prescaler × 1 channel
• LIN-UART × 1 channel
• LIN function, clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• Full duplex double buffer
• UART/SIO × 1 channel
• Clock asynchronous (UART) or clock synchronous (SIO) serial data transfer capable
• Full duplex double buffer
• I2C* × 1 channel
• Built-in wake-up function
• External interrupt × 12 channels
• Interrupt by edge detection (rising, falling, or both edges can be selected)
• Can be used to recover from low-power consumption (standby) modes.
• 8/10-bit A/D converter × 12 channels
• 8-bit or 10-bit resolution can be selected
• LCD controller (LCDC)
• 40 SEG × 4 COM (Max 160 pixels)
• With blinking function
• Low-power consumption (standby) mode
• Stop mode
• Sleep mode
• Watch mode
• Timebase timer mode
• I/O port
• The number of maximum ports : Max 87
• Port configuration
• General-purpose I/O ports (N-ch open drain) : 2 ports
• General-purpose I/O ports (CMOS) : 85 ports
• Programmable input voltage levels of port Automotive input level / CMOS input level / hysteresis input level
• Dual operation Flash memory
• Erase/write and read can be executed in the different bank (Upper Bank/Lower Bank) at the same time.
• Flash memory security function Protects the content of Flash memory (Flash memory device only)
* : Purchase of Fujitsu I2C components conveys a license under the Philips I2C Patent Rights to use, these omponents in an I2C system provided that the system conforms to the I2C Standard Specification as defined by Philips.

The MB95120MB series is general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions.
Note : F²MC is the abbreviation of FUJITSU Flexible Microcontroller.
