MB89P625

Features: • Various package options Three types of QFP packages (1-mm, 0.65-mm, or 0.5-mm lead pitch) SDIP packages• High-speed processing at low voltage Minimum execution time: 0.4 ms/3.5 V, 0.8 ms/2.7 V• F2MC-8L family CPU core• Four types of timers 8-bit PWM timer (also ...

product image

MB89P625 Picture
See larger image
SeekIC No. : 004413754 Detail

MB89P625: Features: • Various package options Three types of QFP packages (1-mm, 0.65-mm, or 0.5-mm lead pitch) SDIP packages• High-speed processing at low voltage Minimum execution time: 0.4 ms/3...

MB89P625 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89P625
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Various package options
   Three types of QFP packages (1-mm, 0.65-mm, or 0.5-mm lead pitch) SDIP packages
• High-speed processing at low voltage
   Minimum execution time: 0.4 ms/3.5 V, 0.8 ms/2.7 V
• F2MC-8L family CPU core
• Four types of timers
   8-bit PWM timer (also usable as a reload timer)
   8-bit pulse width count timer (Continuous measurement capable, applicable to remote control, etc.)
   16-bit timer/counter
   20-bit time-base timer
• Two serial interfaces Switchable transfer direction allows communication with various equipment.
• 8-bit A/D converter Sense mode function enabling comparison


Pinout

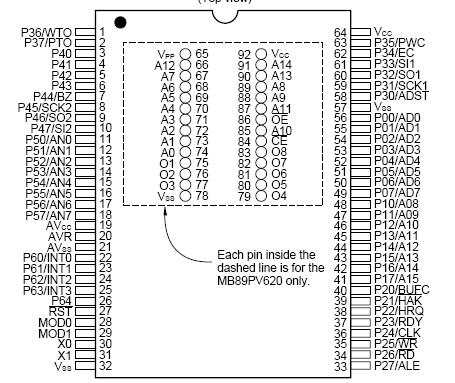

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
AVCC		 VSS 0.3 VSS + 7.0 V
Input voltage VI VSS 0.3 VCC + 0.3 V Except P40 to P47*2
VI2 VSS 0.3 VCC + 0.3   P40 to P47
Output voltage Vo VSS 0.3 VCC + 0.3 V Except P40 to P47*2
Vo2 VSS 0.3 VCC + 0.3   P40 to P47
"L" level output current IOL - 20 mA
"L" level average output current IOLAV - 4 mA
"L" level total output current SIOL - 50 mA
"H" level output current IOH - -10 mA
"H" level average output current IOHAV - -4 mA
"H" level total output current SIOH - -50 mA
Power consumption PD - 400 mW
Operating temperature TA -40 +70 °C
Storage temperature TSTG -55 +150 °C
*1: Use AVCC and VCC set at the same voltage. Take care so that AVCC does not exceed VCC, such as when power is turned on.
*2: VI and VO must not exceed VCC + 0.3 V.


Description

The MB89P625 series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers. In addition to the F2MC-8L CPU core which can operate at low voltage but at high speed, the microcontrollers contain a variety of peripheral functions such as timers, serial interfaces, an A/D converter, and an external interrupt.

The MB89P625 series is applicable to a wide range of applications from welfare products to industrial equipment, including portable devices.
