MB89983

Features: • F2MC-8L family CPU core• Dual-clock control system• Maximum memory size: 8-Kbyte ROM, 256-byte RAM (max.)• Minimum execution time: 0.95 s/4.2 MHz• I/O ports: max. 47 channels (max. 13 high-current type)• 21-bit time-base counter• 8/16-bit timer...

product image

MB89983 Picture
See larger image
SeekIC No. : 004413744 Detail

MB89983: Features: • F2MC-8L family CPU core• Dual-clock control system• Maximum memory size: 8-Kbyte ROM, 256-byte RAM (max.)• Minimum execution time: 0.95 s/4.2 MHz• I/O ports...

MB89983 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89983
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-8L family CPU core
• Dual-clock control system
• Maximum memory size: 8-Kbyte ROM, 256-byte RAM (max.)
• Minimum execution time: 0.95 s/4.2 MHz
• I/O ports: max. 47 channels (max. 13 high-current type)
• 21-bit time-base counter
• 8/16-bit timer/counter: 8bit x 2 channels or 16-bit x 1 channels
• External interrupts (wake-up function): Four channels with edge selection plus eight level-interrupt channels
• 8-bit A/D converter: 4 channels
• 8-bit PWM timers: 2 channels
• Watch prescaler (15 bits)
• LCD controller/driver: 14 segments * 4 commons (max. 56 pixels)
• LCD driving reference voltage generator
• Remote control transmission output
• Buzzer output
• Power-on reset function (option)
• Low-power consumption modes (stop, sleep, and watch mode)
• CMOS technology


Pinout

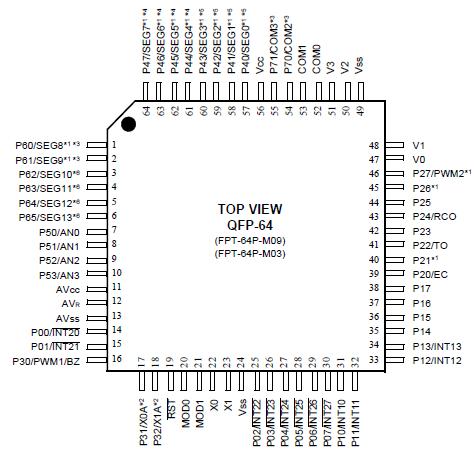

Connection Diagram


Specifications

Parameter
Symbol
Min.
Max.
Unit
Remarks
Power supply voltage
VCC
VSS 0.3
VSS + 7.0
V

AVCC
VSS 0.3
VSS + 7.0
V
 AVCC must not exceed VCC + 0.3 V.
AVR
VSS 0.3
VSS + 7.0
V
 AVR must not exceed AVCC + 0.3 V.
LCD power supply voltage
V0 to V3
VSS 0.3
VSS + 7.0
V
 V0 to V3 must not exceed VCC.
Input voltage
VI1
VSS 0.3
VCC + 0.3
V
 VI1 must not exceed VSS + 7.0 V.
All pins except P20 to P27 without
a pull-up resistor
VI2
VSS 0.3
VSS + 7.0
V
 P20 to P27 without a pull-up resistor
Output voltage
VO1
VSS 0.3
VCC + 0.3
V
 VO1 must not exceed VSS + 7.0 V.
All pins except P20 to P27, P40 to
P47, P60 to P65, P70 and P71 without a pull-up resistor
VO2
VSS 0.3
VSS + 7.0
V
 P20 to P27,P40 to P47, P60 to P65,P70 and P71 without a pull-up resistor
"L" level maximum output current
IOL1
-
10
mA
 All pins except P21, P26, P27, P40 to P47, P60 and P61
IOL2
-
20
mA
 P21, P26, P27, P40 to P47,P60 and P61
"L" level average output current
IOLAV1
-
4
mA
 All pins except P21, P26, P27,
P40 to P47, P60, P61 and power
supply pins Average value (operating current* operating rate)
IOLAV2
-
8
mA
 P21, P26, P27, P40 to P47, P60
and P61 Average value (operating current* operating rate)
"L" level total maximum output current
IOL
-
100
mA
 Peak value
"L" level total average output current
IOLAV
-
40
mA
 Average value (operating current*
operating rate)
"H" level maximum output current
IOH1
-
-5
mA
 All pins except P30 and power
supply pins

IOH2

-

-10

mA

P30




Description

The MB89983 series is a line of the general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such as an LCD controller/driver,an A/D converter, timers, remote control transmission output, buzzer output, PWM timers, and external interrupts.
