MB89960

Features: • Range of package options• QFP and MQFP packages (0.8 mm pitch)• LQFP package (0.5 mm and 0.65 mm pitch)• High speed operation at low voltage Minimum instruction execution time = 0.4 ms (for a 10 MHz oscillation)• F2MC-8L CPU core Instruction set optimized ...

product image

MB89960 Picture
See larger image
SeekIC No. : 004413741 Detail

MB89960: Features: • Range of package options• QFP and MQFP packages (0.8 mm pitch)• LQFP package (0.5 mm and 0.65 mm pitch)• High speed operation at low voltage Minimum instruction e...

MB89960 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89960
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Range of package options
• QFP and MQFP packages (0.8 mm pitch)
• LQFP package (0.5 mm and 0.65 mm pitch)
• High speed operation at low voltage Minimum instruction execution time = 0.4 ms (for a 10 MHz oscillation)
• F2MC-8L CPU core Instruction set optimized for controller applications
• Multiplication and division instructions
• 16-bit arithmetic operations
• Bit test branch instructions
• Bit manipulation instructions, etc.
• Dual-clock control system
• Main clock : 10 MHz max. (Four speed settings available, oscillation halts in sub-clock mode)
• Sub-clock : 32.768 kHz (Operation clock for sub-clock mode)
• Four channels
• 8/16-bit timer/counter (8-bit ´ 2 channels or 16-bit ´ 1 channel)
• 21-bit timebase timer
• Clock prescaler (15-bit)
• Serial I/O Selectable transfer format (MSB-first or LSB-first) supports communications with a wide range of devices.
• A/D converter 10-bit ´ 4 channels
• External interrupts
• External interrupt 1 (3 channels) Three independent interrupt inputs can be used to recover from low-power  onsumption modes (with edgedetection
function)
• External interrupt 2 (1 channel with 8 inputs) Eight inputs can be used to recover from low-power consumption modes (with "L" level detection function)
• Low-power consumption modes (standby modes)
• Stop mode (As all oscillations halt in sub-clock mode, current consumption falls to almost zero.)
• Sleep mode (The CPU stops to reduce the current consumption to approximately 1/3 of normal.)
• Clock mode (All operation halts other than the clock prescaler resulting in very low power consumption.)
• I2C interface*
• Supports Intel SM bus and Philips I2C bus standards.
• Uses a two-wire data transfer protocol.
• Max. 35 I/O ports
• Output-only ports (N-ch open drain) : 6
• General-purpose I/O ports (CMOS) : 21
• Output-only ports (CMOS) : 8

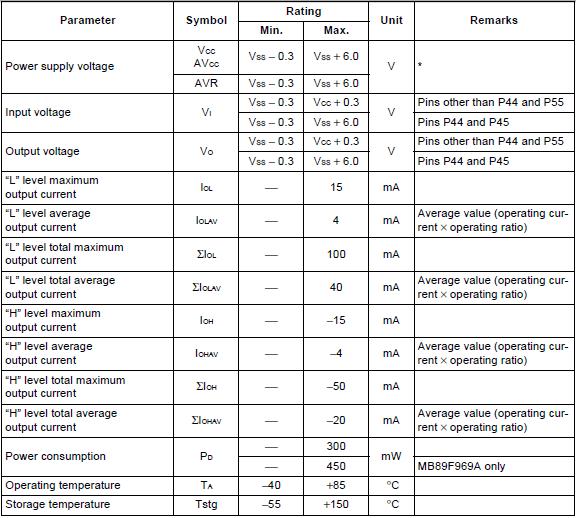

Specifications

Connection Diagram

* : Set AVCC to the same potential as VCC. Also ensure that AVCC does not exceed VCC at power on.


Description

The MB89960 series is a single-chip microcontroller that utilizes the F2MC-8L core for low voltage and high speed performance. The microcontroller contains a range of peripheral functions including timers, a serial interface, I2C interface, A/D converter, and external interrupts. The internal I2C interface complies with the SM bus standard and supports an SM bus battery controller.
