Position: Home  > All Categories> Integrated Circuits (ICs) > MB89935A

MB89935A

Features: • MB89600 Series CPU core• Maximum memory space : 64 Kbytes• Minimum execution time : 0.4 ms/10 MHz• Interrupt processing time : 3.6 ms/10 MHz• I/O ports : max. 21channels• 21-bit timebase timer• 8-bit PWM timer• 8/16-bit capture timer/coun...

product image

MB89935A Picture
See larger image
SeekIC No. : 004413733 Detail

MB89935A: Features: • MB89600 Series CPU core• Maximum memory space : 64 Kbytes• Minimum execution time : 0.4 ms/10 MHz• Interrupt processing time : 3.6 ms/10 MHz• I/O ports : ma...

MB89935A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89935A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• MB89600 Series CPU core
• Maximum memory space : 64 Kbytes
• Minimum execution time : 0.4 ms/10 MHz
• Interrupt processing time : 3.6 ms/10 MHz
• I/O ports : max. 21channels
• 21-bit timebase timer
• 8-bit PWM timer
• 8/16-bit capture timer/counter
• 10-bit A/D converter : 8 channels
• UART
• 8-bit serial I/O
• External interrupt 1 : 3 channels
• External interrupt 2 : 8 channels
• Wild Register : 2 bytes
• Low-power consumption modes ( sleep mode, and stop mode)
• SSOP-30 and MQFP-48 package
• CMOS Technology

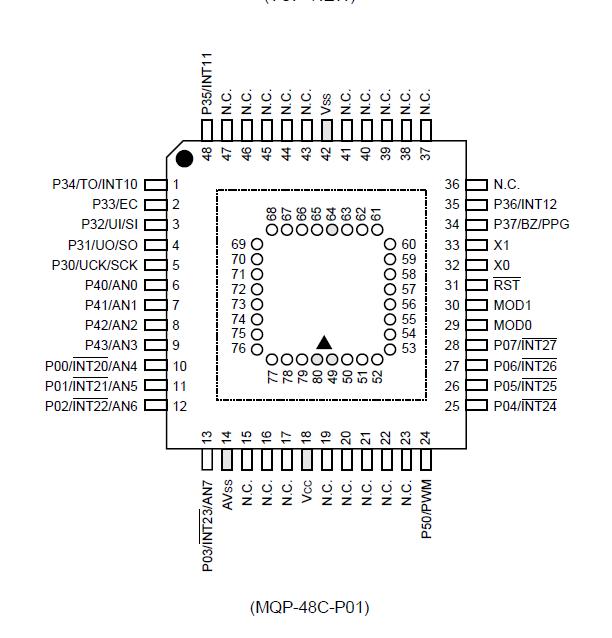

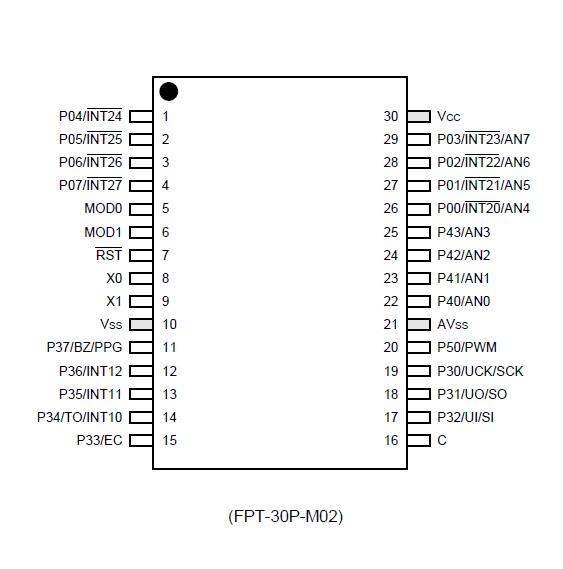

Pinout

Connection Diagram Connection Diagram


Description

The MB89935A series is a line of single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such, timers, a serial interface, an A/D converter and an external interrupt.
