Features:

• High speed processing at low voltage Minimum execution time: 0.5 ms/8.0 MHz
• F2MC-8L family CPU core
• Instruction set optimized for controllers:
   Multiplication and division instructions
   16-bit arithmetic operations
   Test and branch instructions
   Bit manipulation instructions, etc.
• 8-bit PWM timer: 2 channels (also usable as a reload timer)
• 16-bit input capture: 2 channels / 16-bit output compare: 2 channels


Pinout

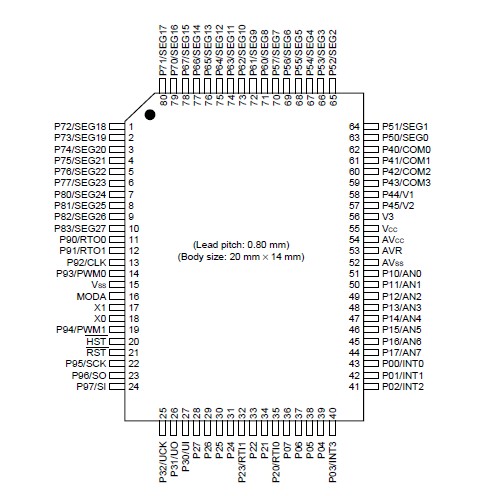

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
 Remarks
Min.
Max.
Power supply voltage
Vcc
Vss 0.3
Vss + 7.0
V

AVcc
Vss 0.3
Vcc + 0.3
V
 *1
AVR
Vss 0.3
Vss + 7.0
V
 AVR must not exceed AVCC + 0.3
V.
LCD power supply voltage
V1 to V3
Vss 0.3
Vss + 7.0
V

Input voltage
V11
Vss 0.3
Vcc + 0.3
v

V1 V2 V3 *2

Output voltage
Vo1
Vss 0.3
Vcc+ 0.3
V
 P00 to P07, P10 to P17, P20 to
P27, P30 to P32, P90 to P97
Vo2
Vss 0.3
Vss + 7.0
V
 P40 to P45, P50 to P57, P60 to
P67, P70 to P77, P80 to P83
Must not exceed "V3 + 0.3 V"
"L" level maximum output
current
IOL
_
20
mA
 Peak value
"L" level average output current
IOLAV
_
4
mA
 Average value
"L" level total maximum output
current
IOL
_
100
mA
 Peak value
"L" level total average output
current
IOLAV
_
40
mA
 Average value
"H" level maximum output
current
IOH
_
20
mA
 Peak value
"H" level average output current
IOHAV
_
4
mA
 Average value
"H" level total maximum output
current
IOH
_
50
mA
 Peak value
"H" level total average output
current
IOHAV
_
20
mA
 Average value
Power consumption
PD
_
300
mW

Operating temperature
TA
40
+85
°C

Storage temperature
Tstg
55
+150
°C



*1: Use AVcc and Vcc set at the same voltage.
  Take care so that AVcc does not exceed Vcc, such as when power is turned on.
*2: Vccmust not exceed V3.







Description

The MB89923 series is a line of single-chip microcontrollers using the F2MC*-8L CPU core which can operate at low voltage but at high speed.

The microcontrollers in this series contain peripheral functions such as a PWM timer, an input capture/output compare control counter, an LCD controller/driver, an A/D converter, and a UART.

The MB89923 series can suit a wide range of applications such as analog input conversion, pulse input measurement/pulse output control, serial communications control, and display control.

*: F2MC stands for FUJITSU Flexible Microcontroller.
