MB89898

Features: • F2MC-8L family CPU core• Dual clock control system• Maximum memory size: 64 Kbytes• Minimum execution time: 0.5 ms at 8 MHz• Interrupt processing time: 4.5 ms at 8 MHz• I/O ports: max. 85 ports• 21-bit time-base counter• 8-bit PWM timer&#...

product image

MB89898 Picture
See larger image
SeekIC No. : 004413724 Detail

MB89898: Features: • F2MC-8L family CPU core• Dual clock control system• Maximum memory size: 64 Kbytes• Minimum execution time: 0.5 ms at 8 MHz• Interrupt processing time: 4.5 ...

MB89898 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89898
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-8L family CPU core
• Dual clock control system
• Maximum memory size: 64 Kbytes
• Minimum execution time: 0.5 ms at 8 MHz
• Interrupt processing time: 4.5 ms at 8 MHz
• I/O ports: max. 85 ports
• 21-bit time-base counter
• 8-bit PWM timer
• DTMF generator
• 8/16-bit timer
• 8-bit serial I/O
• Serial I/O with 1-byte buffer
• A/D converter
• Modem timer (pulse-width counter)
• Modem signal output


Pinout

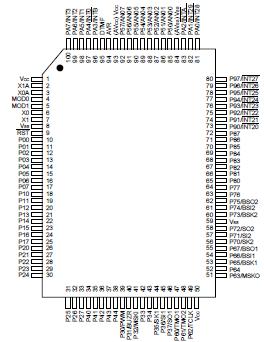

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage VCC
AVCC
AVR		 VSS 0.3 VSS + 7.0 V Set VCC = AVCC*
AVR must not exceed "AVCC +0.3 V".
LCD power supply voltage V0 to V3 VSS 0.3 VSS + 7.0 V V0 to V3 must not exceed VCC.
Input voltage VI VSS 0.3 VCC + 0.3 V Except P40 to P44, P70 to P77,P80 to P87
Output voltage VO VSS 0.3 VCC + 0.3 V
"L" level output current IOL 20 mA Peak value
"L" level average output current IOLAV 10 mA Specified by the average value
of 1 hour.
"L" level total maximum output current IOL 120 mA Peak value
"L" level total average outputcurrent IOLAV 40 mA Specified by the average value
of 1 hour.
"H" level output current IOH 20 mA Peak value
"H" level average output current IOHAV 10 mA Specified by the average value
of 1 hour.
"H" level total maximum output current IOH 60 mA Peak value
"H" level average output
current		 IOHAV 20 mA Specified by the average value
of 1 hour.
Power consumption PD 200 mA
Operating temperature TA 40 +85 °C
Storage temperature Tstg 55 +150 °C
* : Use AVCC and VCC set at the same voltage. Take care so that AVR does not exceed AVCC + 0.3 V and AVCC does not exceed VCC, such as when power is turned on.


Description

The MB89898 series is a line of single-chip microcontrollers containing a great variety of peripheral functions such as dual clock control systems, 4-stage operating speed controller, DTMF signal generator, timer, PWM timer, serial interface, modem, A/D converter and external interrupt, as well as compact instruction set.
