Features:

• Various package options
  QFP package (80 pins): MB89860
  SDIP package (64 pins): MB89850
• High-speed processing at low voltage
  Minimum execution time: 0.4 ms/3.5 V, 0.8 ms/2.7 V


Pinout

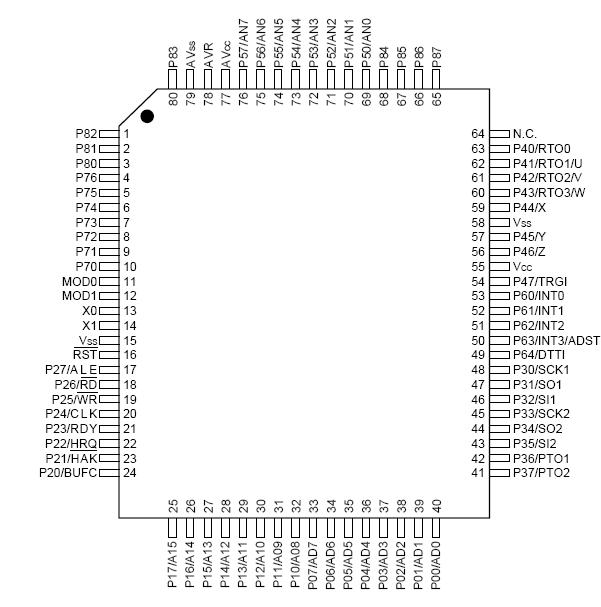

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
AVCC		 VSS 0.3 VSS + 7.0 V
A/D converter reference input
voltage		 AVR VSS 0.3 VSS + 7.0 V AVR must not exceed AVCC +
0.3 V.
Program voltage VPP VSS 0.3 13.0 V MOD1 pins of MB89P867/
W867 and MB89P857/W857
Input voltage VI VSS 0.3 VSS + 3.0 V
Output voltage VO VSS 0.3 VSS + 3.0 V
"L" level maximum output current IOL - 20 mA
"L" level average output current IOLAV1 -- 4 mA P00 to P07, P10 to P17,
P20 to P27, P30 to P37,
P50 to P57, P70 to P76,
P80 to P87
IOLAV2 - 15 P40 to P4
"L" level total average output
current		 SIOLAV1 - 30 mA P00 to P07, P10 to P17,
P20 to P27, P30 to P37,
P50 to P57, P70 to P76,
P80 to P87
SIOLAV2 - 50 P40 to P4
"H" level maximum output current IOH - -20 mA
"H" level average output current IOHAV - -4 mA
"H" level total maximum output
current		 SIOH - -20 mA
Power consumption PD - 30 mW
Operating temperature TA -40 +85 °C
Storage temperature Tstg -55 +150 °C



Description

The MB89860/850 series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip, microcontrollers.

In addition to the F2MC-8L CPU core which can operate at low voltage but at high speed, the microcontrollers contain a variety of peripheral functions such as a timer unit, PWM timers, a UART, a serial interface, a 10-bit A/D converter, and an external interrupt.

The MB89860/850 series is applicable to a wide range of applications from welfare products to industrial equipment, including portable devices.

*: F2MC stands for FUJITSU Flexible Microcontroller.
