Features:

F2MC-8L family CPU core
Instruction set optimized for controllers:`Multiplication and division instructions `16-bit arithmetic operations `Test and branch instructions `Bit manipulation instructions, etc.
High-speed processing at low voltage
Minimum execution time: 0.4 s@3.5 V, 0.8 s@2.7 V, 2.0 s@2.2 V
I/O ports: max. 69 channels




Pinout

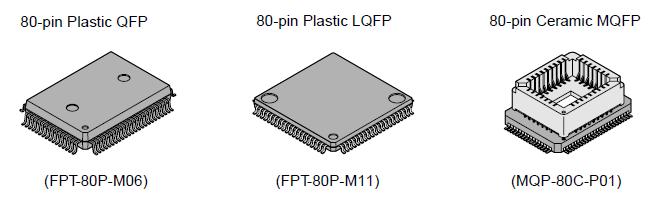

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
 VSS 0.3 VSS + 7.0 V *
AVCC VSS 0.3 VSS+0.3 V *
A/D converter reference input
voltage		 AVR VSS 0.3 VCC + 0.3 V AVR must not exceed
"AVCC + 0.3 V".
Input voltage VI VSS 0.3 VCC + 0.3 V
Output voltage VO1 VSS 0.3 VCC + 0.3 V Except P70 to P75*2
  VO2 VSS 0.3 VSS + 7.0 V
"L" level maximum output current IOL _ 20 mA
"L" level average output current IOLAV _ 4 mA Avarage value (operating
current ´ operating rate)
  IOLAV2 - 8 mA Average value (operating current
*operating rate)
P80 to P85
"L" level total maximum output current IOL _ 100 mA
"L" level total average output current IOLAV _ 40 mA Avarage value (operating
current ´ operating rate)
"H" level maximum output current IOH _ -20 mA
"H" level average output current IOHAV _ -4 mA Avarage value (operating
current ´ operating rate)
"H" level total maximum output current IOH _ -50 mA
"H" level total average output current IOHAV _ -20 mA Avarage value (operating
current ´ operating rate)
Power consumption PD _ 300 mW
Operating temperature TA -40 +85
Storage temperature Tstg -55 +150
