MB89650AR

Features: •F2MC-8L family CPU core•Dual-clock control system•Maximum memory space: 64 Kbytes•Minimum execution time: 0.4 ms/10 MHz•Interrupt processing time: 3.6 ms/10 MHz•I/O ports: max. 64 channels•21-bit time-base counter•8-bit PWM timers: 2 chann...

product image

MB89650AR Picture
See larger image
SeekIC No. : 004413691 Detail

MB89650AR: Features: •F2MC-8L family CPU core•Dual-clock control system•Maximum memory space: 64 Kbytes•Minimum execution time: 0.4 ms/10 MHz•Interrupt processing time: 3.6 ms/10 ...

MB89650AR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89650AR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•F2MC-8L family CPU core
•Dual-clock control system
•Maximum memory space: 64 Kbytes
•Minimum execution time: 0.4 ms/10 MHz
•Interrupt processing time: 3.6 ms/10 MHz
•I/O ports: max. 64 channels
•21-bit time-base counter
•8-bit PWM timers: 2 channels (A maximum of 4 channels can be used for output.)
•8/16-bit timer/counter: 4 channels (16 bits ´ 2 channels)
•8-bit serial I/O: 1 channel
•8-bit A/D converter: 8 channels




Pinout

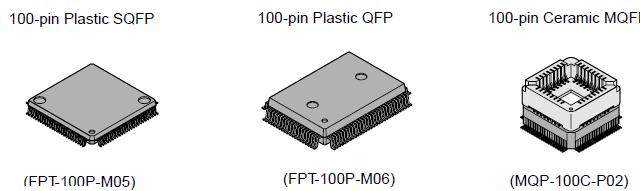

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
AVCC		 VSS 0.3 VSS + 7.0 V *1
A/D converter reference input
voltage		 AVR VSS 0.3 VSS + 7.0 V
LCD power supply voltage V0 to V3 VSS 0.3 VSS + 7.0 V V0 to V3 must not exceed VCC.
Input voltage VI VSS 0.3 VCC + 0.3 V Except P70 to P75*2
  VI2 VSS 0.3 VSS + 7.0 V P70 to P75
Output voltage VO VSS - 0.3 VCC + 0.3 V Except P70 to P75*2
  VO2 VSS 0.3 VSS + 7.0 V P70 to P75
"L" level maximum output current IOL _ 20 mA
"L" level average output current IOLAV _ 4 mA Avarage value (operating
current ´ operating rate)
"L" level total maximum output current IOL _ 100 mA
"L" level total average output current IOLAV _ 40 mA Avarage value (operating
current ´ operating rate)
"H" level maximum output current IOH _ -20 mA
"H" level average output current IOHAV _ -4 mA Avarage value (operating
current ´ operating rate)
"H" level total maximum output current IOH _ -50 mA
"H" level total average output current IOHAV _ -200 mA Avarage value (operating
current ´ operating rate)
Power consumption PD _ 300 mW
Operating temperature TA -40 +85
Storage temperature Tstg -55 +150



Description

The MB89650AR series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.

In addition to a compact instruction set, the MB89650AR contain a variety of peripheral functions such as dual-clock control system, five operating speed control stages, timers, PWM timers, a serial interface, an A/D converter, external interrupts, an LCD controller/driver, and a watch prescaler.
