MB89613R

Features:

• Various package options
Three types of QFP packages (0.5-mm, 0.65-mm, 1-mm pitch) SDIP package
• High-speed processing at low voltages
Minimum execution time: 0.4 µs/3.5 V and 0.8 µs/2.7 V
•F2MC-8L family CPU core
• Four types of timers
8-bit PWM timer (also usable a reload timer)8-bit pulse-width count timer (Continuous measurement capable, applicable to remote control, etc) 16-bit timer/counter 20-bit time-base timer
• Two serial interfaces
Switchable transfer direction allows communication with various equipment.
• External interrupt: 4 channels
Four channels are independent and capable of wake-up from low-power consumption modes (with an edge detection function).
• Low-power consumption modes
Stop mode (Oscillation stops to minimize the current consumption.)Sleep mode (The CPU stops to reduce the current consumption to approx. 1/3 of normal.)
• Bus interface function
Including hold and ready functions

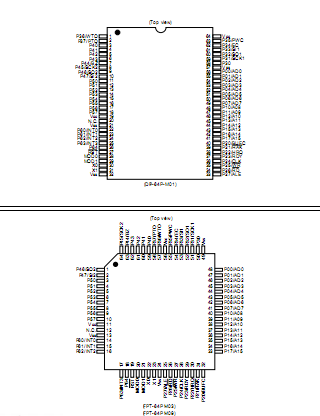

Pinout




Description

MB89613R series has been developed as a general-purpose version of the F²MC*-8L family of proprietary 8-bit,
single-chip microcontrollers.
In addition to the F2MC-8L CPU core which can operate at low voltage but at high speed, the MB89613R contain peripheral resources such as timers, serial interfaces, and an external interrupt.
The MB89610R series is applicable to a wide range of application from welfare products to industrial equipment,
including portable devices.
*: F²MC stands for FUJITSU Flexible Microcontroller.
