Product Details

Description



Features:

• F2MC-8L family CPU core
• Low-voltage operation (when an A/D converter is not used)
• Low current consumption (applicable to the dual-clock system)
• Minimum execution time: 0.32 ms at 12.5 MHz /3.5 V to 5.5 V

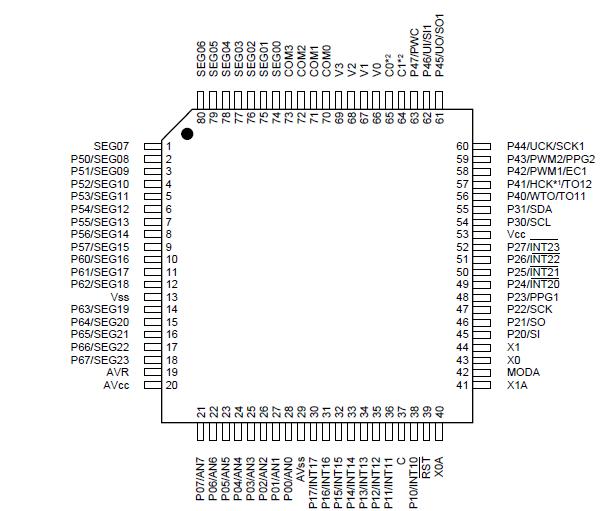

Pinout

Connection Diagram


Specifications

  Symbol Rating Unit Remarks
Min Max
  VCC
AVCC		 VSS − 0.3 VSS + 6.0 V MB89567A, MB89567AC,
MB89P568 and MB89PV560*1
  AVR VSS − 0.3 VSS + 6.0 V AVR must not exceed "AVcc + 0.3V".
LCD power voltage V0 to V3 VSS − 0.3 VSS + 6.0 V V0 to V3 should not exceed Vcc
Without booster
Program voltage VPP VSS − 0.6 VSS +13.0 V Only for the MB89P568
Input voltage VI VSS 0.3 VCC + 0.3 V For pins other than P30, P31, P46,
P47, P50 to P57 and P60 to P67
VSS 0.3 VCC + 0.3 V P50 to P57, P60 to P67
Resister Ladder option
VSS 0.3 V3 V P50 to P57, P60 to P67
LCD booster option
VSS 0.3 VSS + 6.0 V For P30, P31, P46, P47
Output voltage VO VSS 0.3 VCC + 0.3 V For pins other than P30, P31, P46,
P47, P50 to P57 and P60 to P67
VSS 0.3 VCC + 0.3 V P50 to P57, P60 to P67
Resister Ladder option
VSS 0.3 V3 V P50 to P57, P60 to P67
LCD booster option
VSS 0.3 VSS + 6.0 V For P30, P31, P46, P47
"L" level maximum output current IOL - 15 mA For pins other than P20 to P27
30 mA For P20 to P27 only
"L" level average output current IOLAV - 4 mA For pins other than P20 to P27*2
15 mA For P20 to P27 only*2
"L" level total maximum output current IOL - 100 mA
"L" level total average output current IOLAV - 60 mA *2
"H" level maximum output current IOH - -15 mA For pins other than P20 to P27, P30,
P31, P46, P47, P50 to P57, P60 to
P67
-30 mA For P20 to P27 only
"H" level average output current IOHAV - -4 mA For pins other than P20 to P27*2
-15 For P20 to P27 only*2



Description

The MB89560A series has been developed as a general-purpose version of the F2MC*1-8L family consisting of proprietary 8-bit, single-chip microcontrollers.

In addition to a compact instruction set, the MB89560A contains a variety of peripheral functions such as I2C interface*2, timers, 2 ch 8-bit PWM timers, 8/16-bit timer, 21-bit timebase timer, 8-bit PWC timer, 17-bit Watch prescaler, Watch-dog timer, High speed UART, 8-bit SIO, UART/SIO, LCD controller/driver (optional booster), Two type Programmable Pulse Generators (PPG), an A/D converter, and external interrupt.

*1 : F2MC stands for FUJITSU Flexible Microcontroller.
*2 : I2C of this product is complied to Intel Corp. System Management Bus Rev. 1.0 specification and to the Philips I2C specification.
