Product Details

Description



Features:

• Wide range of package options
· Two types of QFP packages (1 mm pitch, 0.65 mm pitch)
· LQFP package (0.5 mm pitch)
· SH-DIP package
• Low voltage, high-speed operating capability
· Minimum instruction execution time 0.32 ms (at base oscillator 12.5 MHz)
• F2MC-8L CPU Core
· Instruction set optimized for controller operation
· Multiplication/division instructions
· 16-bit calculation
· Branching instructions with bit testing
· Bit operation instructions, etc.
• Five timer systems
· 8-bit PWM timer with 2 channels (usable as either interval timer of PWM timer)
· Pulse width count timer (supports continuous measurement or remote control receiving applications)
· 16-bit timer counter
· 21-bit time base timer
· Clock prescaler (17-bit)
· UART
· Synchronous or asynchronous operation, switchable
• 2 serial interfaces (Serial I/O)
· Selection of transfer direction (specify MSB first or LSB first) for communication with a variety of devices
• 10-bit A/D converter (8 channels)
· External clock input and time base timer output for startup support
• Pulse generators (PPG) with 2-program capability
· 6-bit PPG with selection of pulse width and pulse period
· 12-bit PPG (2 channels) with selection of pulse width and pulse period
• I2C interface circuits
• External interrupt 1 (4 channels)
· 4 independent inputs, release enabled from standby mode (includes edge detection function)
• External interrupt 2 (8 channels)
· 8 independent inputs, release enabled form standby mode (includes level edge detection function)
• Standby modes (low power consumption modes)
· Stop mode (oscillator stops, virtually no power consumed)
· Sleep mode (CPU stops, power consumption reduced to one-third)
· Sub clock mode
· Clock mode
• Watchdog timer reset
• I/O ports
· Maximum 53 ports
· 38 general-purpose I/O ports (CMOS)
· 2 general-purpose I/O ports (N-ch open drain)
· 8 general-purpose output ports (N-ch open drain)
· 5 general-purpose input ports (CMOS)


Pinout

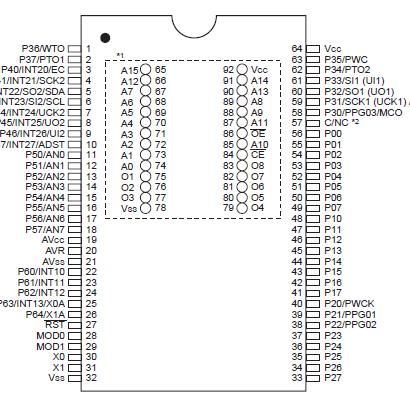

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage*1 AVR VSS - 0.3 VSS + 6.0 V MB89537H/538H*
MB89537HC/538HC
MB89P538
MB89PV530
VCC
AVCC		 VSS - 0.3 VSS + 6.0
Input voltage VI VSS - 0.3 VCC + 0.3   Other than P42, P43
VSS - 0.3 VSS + 6.0 V P42, P43
Output voltage VO VSS - 0.3 VCC + 0.3   Other than P42, P43
VSS - 0.3 VSS + 6.0 V P42, P43
"L" level maximum
output current		 IOL - 15 mA
"L" level average
current		 IOLAV - 4 mA Average value
(operating current ´ operating duty)
"L" level total maximum
output current		 IOL - 100 mA
"L" level total average
output current		 IOLAV - 50 mA Average value
(operating current ´ operating duty)
"H" level maximum
output current		 IOH - -15 mA
"H" level average
current		 IOHAV - -4 mA Average value
(operating current ´ operating duty)
"H" level total maximum
output current		 IOH - -100 mA
"H" level total average
output current		 IOHAV - -50 mA Average value
(operating current ´ operating duty)
Power consumption Pd - 300 mW
Operating temperature TA -40 +85
Storage temperature Tstg -55 +150
* : AVcc and Vcc are to be used at the same potential. AVR should not exceed AVcc + 0.3V.


Description

The MB89530H series is a one-chip microcontroller featuring the F2MC-8L core supporting low-voltage and highspeed
operation. Built-in peripheral functions include timers, serial interface, A/D converter, and external interrupt.

MB89530H is an ideal general-purpose one-chip microcontroller for a wide variety of applications from household o industrial equipment, as well as use in portable devices.
