MB89490

Features:

• Package used
QFP package for MB89F499, MB89497,MB89498 MQFP package for MB89PV490
• High speed operating capability at low voltage
• Minimum execution time: 0.32 µs/12.5MHz
•Clock
Embedded PLL clock multiplication circuit for sub-clock Operating clock (PLL for sub-clock) can be selected four times of the sub-clock oscillation
•Six timers
PWM timer x 2 8/16-bit timer/counter x 2 21-bit timebase timer Watch prescaler
• External interrupt
Edge detection (selectable edge) : 8 channels Low level interrupt (wake-up function) : 8 channels
• 10-bit A/D converter (8 channels)
10-bit successive approximation type
• UART/SIO
Synchronous/asynchronous data transfer capability
•SIO
Synchronous data transfer capability
• LCD controller/driver
Max. 32 segments output x 4 commons
•I
2C interface circuit
• Remote receiver circuit
• Low-power consumption mode
Stop mode (oscillation stops so as to minimize the current consumption.) Sleep mode (CPU stops so as to reduce the current consumption to approx. 1/3 of normal.)Watch mode (everything except the watch prescaler stops so as to reduce the power comsumption to extremely low level.) Sub-clock mode
• Watchdog timer reset
• I/O ports: max. 66channels

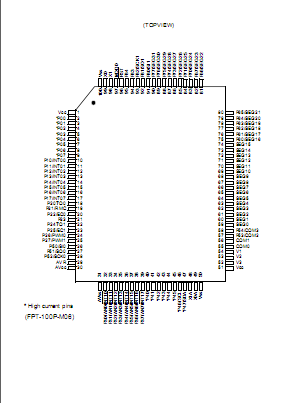

Pinout




Description

The MB89490 series has been developed as a general-purpose version of the F²MC*-8L family consisting of proprietary 8-bit single-chip microcontrollers.
In addition to a compact instruction set, the microcontroller contains a variety of peripheral functions such as 21-bit timebase timer, watch prescaler, PWM timer, 8/16-bit timer/counter, remote receiver control, LCD controller/driver, external interrupt 0 (edge), external interrupt 1 (level), 10-bit A/D converter, UART/SIO, SIO,I²C and watchdog timer reset.
The MB89490 series is designed suitable for compact disc/cassette tape/radio receiver controller as well as in
a wide range of applications for consumer product.
*: F²MC stands for FUJITSU Flexible Microcontroller.
