MB89183L

Features: • F2MC-8L family CPU core• Dual-clock control system• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (Max)• Minimum execution time: 0.95 ms/4.2 MHz• I/O ports: Max 43 channels• 21-bit time-base timer• 8/16-bit timer/counter: 2 or 1 channels̶...

product image

MB89183L Picture
See larger image
SeekIC No. : 004413648 Detail

MB89183L: Features: • F2MC-8L family CPU core• Dual-clock control system• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (Max)• Minimum execution time: 0.95 ms/4.2 MHz• I/O port...

MB89183L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89183L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-8L family CPU core
• Dual-clock control system
• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (Max)
• Minimum execution time: 0.95 ms/4.2 MHz
• I/O ports: Max 43 channels
• 21-bit time-base timer
• 8/16-bit timer/counter: 2 or 1 channels
• 8-bit serial I/O: 1 channel
• External interrupts (wake-up function): Four channels with edge detection plus eight level-interrupt channels
• Watch prescaler (15 bits)
• LCD controller/driver: 32 segments ´ 4 commons (Max 128 pixels)
• LCD driving reference voltage generator
• Remote control transmission output
• Buzzer output
• Power-on reset function (option)
• Low-power consumption modes (stop, sleep, and watch mode)
• CMOS technology


Pinout

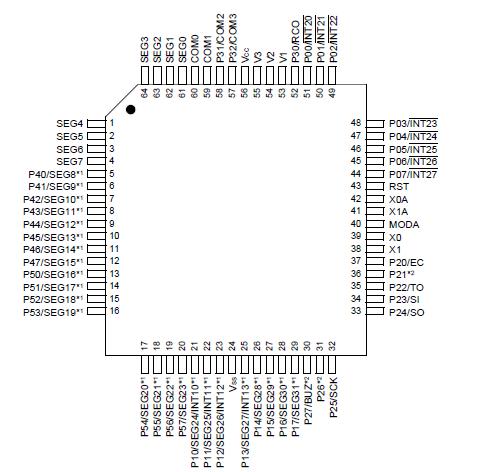

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Remarks
Min
Max
Power supply voltage
VCC
VSS 0.3
VSS + 4.0
V
For MB89183L/185L
VSS 0.3
VSS + 7.0
V
For MB89PV180/P185
LCD power supply voltage
V1 to V3
VSS 0.3
VSS + 4.0
V
For MB89183L/185L
V1 to V3 must not exceed VCC.
VSS 0.3
VSS + 7.0
V
For MB89PV180/P185
V1 to V3 must not exceed VCC.
Input voltage
VI1
VSS 0.3
VCC + 0.3
V
VI1 must not exceed VSS + 4.0 V for
MB89183L/185L and VSS + 7.0 V for
MB89PV180/P185. All pins except
P20 to P27 without a pull-up resistor
VI2
VSS 0.3
VSS + 4.0
V
P20 to P27 without a pull-up resistor
for MB89183L/185L
VSS 0.3
VSS + 7.0
V
P20 to P27 without a pull-up resistor
for MB89PV180/P185
Output voltage
VO1
VSS 0.3
VCC + 0.3
V
VO1 must not exceed VSS + 4.0 V for
MB89183L/185L and VSS + 7.0 V for
MB89PV180/P185. All pins except
P20 to P27, P40 to P47, and P50 to
P57 without a pull-up resistor
VO2
VSS 0.3
VSS + 4.0
V
P20 to P27, P40 to P47, and P50 to
P57 without a pull-up resistor for
MB89183L/185L
VSS 0.3
VSS + 7.0
V
P20 to P27, P40 to P47, and P50 to
P57 without a pull-up resistor for
MB89PV180/P185
"L" level maximum output current
IOL1
-
10
mA
All pins except P21, P26, and P27
IOL2
-
20
mA
P21, P26, and P27
"L" level average output current
IOLAV1
-
4
mA
All pins except P21, P26, P27, and
power supply pins
Average value (operating current*
operating rate)
IOLAV2
-
8
mA
P21, P26, and P27
Average value (operating current*
operating rate)
"L" level total maximum output current
IOL
-
80
mA
Peak value
"L" level total average output current
SIOLAV
-
40
mA
Average value (operating current*
operating rate)



Description

The MB89183L series is a line of the general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such as an  CD controller/driver, timers, a serial interface, and external interrupts.
