MB254W-BP

Bridge Rectifiers 25A 400V

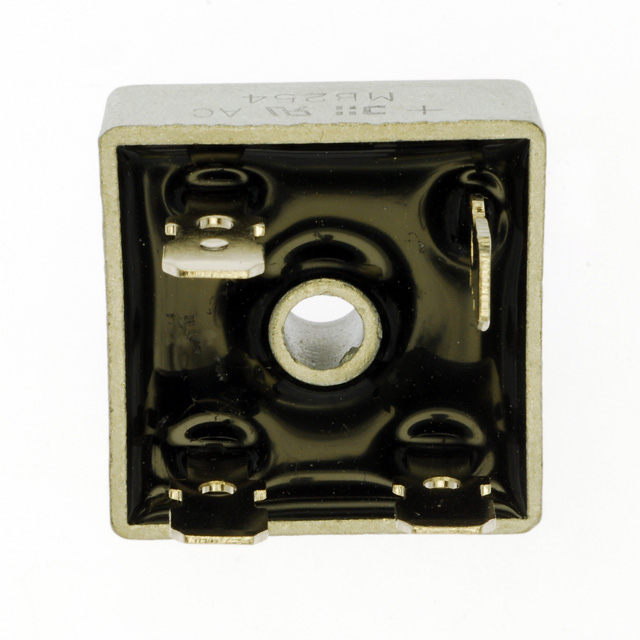

product image

MB254W-BP Picture
See larger image
SeekIC No. : 00133197 Detail

MB254W-BP: Bridge Rectifiers 25A 400V

MB254W-BP Data Sheet

floor Price/Ceiling Price

US $ 1.31~2.42 / Piece | Get Latest Price
Part Number:
MB254W-BP
Mfg:
Micro Commercial Components (MCC)
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $2.42
  • $2.14
  • $1.52
  • $1.31
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Single Phase Bridge Peak Reverse Voltage : 400 V
Maximum RMS Reverse Voltage : 280 V Max Surge Current : 300 A
Forward Voltage Drop : 1.2 V Maximum Reverse Leakage Current : 10 uA
Maximum Operating Temperature : + 125 C Length : 28.83 mm
Width : 28.83 mm Height : 11.35 mm
Mounting Style : Through Hole Package / Case : MB-35W
Packaging : Bulk

Description

Forward Continuous Current :
Power Dissipation :
Product : Single Phase Bridge
Mounting Style : Through Hole
Maximum Reverse Leakage Current : 10 uA
Peak Reverse Voltage : 400 V
Maximum RMS Reverse Voltage : 280 V
Max Surge Current : 300 A
Packaging : Bulk
Forward Voltage Drop : 1.2 V
Maximum Operating Temperature : + 125 C
Length : 28.83 mm
Width : 28.83 mm
Height : 11.35 mm
Package / Case : MB-35W


Parameters:

Technical/Catalog InformationMB254W-BP
VendorMicro Commercial Co
CategoryDiscrete Semiconductor Products
Diode Type Single Phase
Package / CaseMB-35W
PackagingBulk
Reverse Recovery Time (trr)-
SpeedStandard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)25A
Voltage - Peak Reverse (Max)400V
Mounting TypeThrough Hole
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MB254W BP
MB254WBP
MB254W BPMS ND
MB254WBPMSND
MB254W-BPMS
