MB2541

Features: • Two 8-bit bus interfaces• Power-up 3-State• Multiple VCC and GND pins minimize switching noise• Provides ideal interface and increases fan-out of MOS Microprocessors• 3-State buffers sink 64mA and source 32mA• Latch-up protection exceeds 500mA per Je...

product image

MB2541 Picture
See larger image
SeekIC No. : 004413221 Detail

MB2541: Features: • Two 8-bit bus interfaces• Power-up 3-State• Multiple VCC and GND pins minimize switching noise• Provides ideal interface and increases fan-out of MOS Microprocess...

MB2541 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB2541
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two 8-bit bus interfaces
• Power-up 3-State
• Multiple VCC and GND pins minimize switching noise
• Provides ideal interface and increases fan-out of MOS
   Microprocessors
• 3-State buffers sink 64mA and source 32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015
  and 200 V per Machine Model
• Inputs are disabled during 3-State mode


Pinout

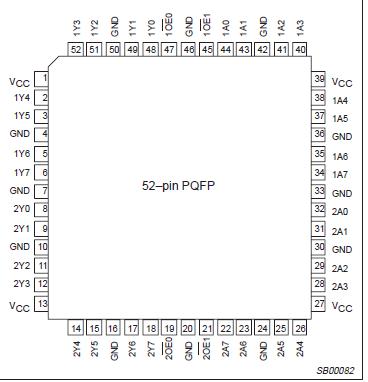

Connection Diagram


Specifications

SYMBOL

PARAMETER

CONDITIONS

RATING

UNIT

VCC

DC supply voltage



0.5 to +7.0

V

IIK

DC input diode current

VI < 0

18

mA

VI

DC input voltage3



1.2 to +7.0

V

IOK

DC output diode current

VO < 0

50

mA

VOUT

DC output voltage3

output in Off or High state

0.5 to +5.5

V

IOUT

DC output current

output in Low state

128

mA

Tstg

Storage temperature range



65 to 150

°C

1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.


Description

The MB2541 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The MB2541 has two 8-bit buffers that are ideal for driving bus lines.

The outputs are all capable of sinking 64mA and sourcing 32mA.
