MAX767

Features: >90% Efficiency 700µA Quiescent Supply Current 120µA Standby Supply Current 4.5V-to-5.5V Input Range Low-Cost Application Circuit All N-Channel Switches Small External Components Tiny Shrink-Small-Outline Package (SSOP) Predesigned Applications: Standard 5V to 3.3V DC-DC...

product image

MAX767 Picture
See larger image
SeekIC No. : 004412151 Detail

MAX767: Features: >90% Efficiency 700µA Quiescent Supply Current 120µA Standby Supply Current 4.5V-to-5.5V Input Range Low-Cost Application Circuit All N-Channel Switches Small External Comp...

MAX767 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX767
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

>90% Efficiency
700µA Quiescent Supply Current
120µA Standby Supply Current
4.5V-to-5.5V Input Range
Low-Cost Application Circuit
All N-Channel Switches
Small External Components
Tiny Shrink-Small-Outline Package (SSOP)
Predesigned Applications:
       Standard 5V to 3.3V DC-DC Converters up to 10A
       High-Accuracy Pentium P54C VR-Spec Supply
Fixed Output Voltages Available:
       3.3V (Standard)
       3.45V (High-Speed Pentium™)
       3.6V (PowerPC™)


Application

Local 5V-to-3.3V DC-DC Conversion

Microprocessor Daughterboards

Power Supplies up to 10A or More


Pinout

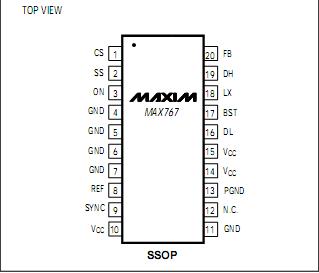

Connection Diagram


Specifications

VCC to GND...............................................................-0.3V, +7V
PGND to GND......................................................................±2V
BST to GND..............................................................-0.3V, +15V
LX to BST...................................................................-7V, +0.3V
Inputs/Outputs to GND
    (ON, REF, SYNC, CS, FB, SS).........................-0.3V, VCC+ 0.3V
DL toPGND.......................................................-0.3V, VCC+ 0.3V
DH to LX..........................................................-0.3V, BST + 0.3V
REF Short to GND......................................................Momentary
REF Current.......................................................................20mA
Continuous Power Dissipation (TA +70°C)
   20-Pin SSOP (derate 8.00mW/°C above +70°C).......640mW
Operating Temperature Ranges:
   MAX767CAP/MAX767_CAP................................0°C to +70°C
   MAX767EAP/MAX767_EAP.............................-40°C to +85°C
Lead Temperature (soldering, 10sec)............................+300°C


Description

The MAX767 is a high-efficiency, synchronous buck controller IC dedicated to converting a fixed 5V supply into a tightly regulated 3.3V output. Two key features set this MAX767 apart from similar, low-voltage step-down switching regulators: high operating frequency and all N-channel construction in the application circuit. The 300kHz operating frequency results in very small, low-cost external surface-mount components.

The inductor MAX767, at 3.3µH for 5A, is physically at least five times smaller than inductors found in competing solutions. All N-channel construction and synchronous rectification result in reduced cost and highest efficiency. Efficiency of MAX767 exceeds 90% over a wide range of loading, eliminating the need for heatsinking. Output capacitance requirements are low, reducing board space and cost.

The MAX767 is a monolithic BiCMOS IC available in 20-pin SSOP packages. For other fixed output voltages and package options, please consult the factory.
