MAX765

Features: High Efficiency for a Wide Range of Load Curren250mA Output Current120A Max Supply Current5A Max Shutdown Current3V to 16V Input Voltage Range-5V (MAX764), -12V (MAX765), -15V (MAX766), or Adjustable Output from -1V to -16VCurrent-Limited PFM Control Scheme300kHz Switching FrequencyInter...

product image

MAX765 Picture
See larger image
SeekIC No. : 004412147 Detail

MAX765: Features: High Efficiency for a Wide Range of Load Curren250mA Output Current120A Max Supply Current5A Max Shutdown Current3V to 16V Input Voltage Range-5V (MAX764), -12V (MAX765), -15V (MAX766), or...

MAX765 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX765
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Efficiency for a Wide Range of Load Curren
250mA Output Current
120A Max Supply Current
5A Max Shutdown Current
3V to 16V Input Voltage Range
-5V (MAX764), -12V (MAX765), -15V (MAX766),  or Adjustable Output from -1V to -16V
Current-Limited PFM Control Scheme
300kHz Switching Frequency
Internal, P-Channel Power MOSFET


Application

LCD-Bias Generators
Portable Instruments
LAN Adapters
Remote Data-Acquisition Systems
Battery-Powered Applications



Pinout

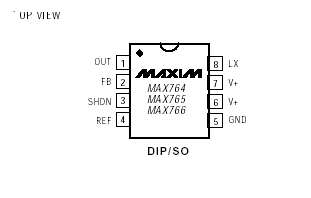

Connection Diagram


Specifications

V+ to GND .........................................................-0.3V to +17V
OUT to GND ......................................................+0.5V to -17V
Maximum Differential (V+ to OUT) ..................................+21V
REF, SHDN, FB to GND .............................-0.3V to (V+ + 0.3V)
LX to V+.............................................................+0.3V to -21V
LX Peak Current ..............................................................1.5A
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 9.09mW/°C above +70°C) ........727mW
SO (derate 5.88mW/°C above +70°C) ....................471mW
CERDIP (derate 8.00mW/°C above +70°C) .............640mW
Operating Temperature Ranges
MAX76_C_A ....................................................0°C to +70°C
MAX76_E_A .................................................-40°C to +85°C
MAX76_MJA ...............................................-55°C to +125°C
Maximum Junction Temperatures
MAX76_C_A/E_A .......................................................+150°C
MAX76_MJA ...............................................................+175°C
Storage Temperature Range .....................-65°C to +160°C
Lead Temperature (soldering, 10sec) .......................+300°C


Description

The MAX764/MAX765/MAX766 inverting switching regulators are highly efficient over a wide range of load currents,delivering up to 1.5W. A unique, current-limited,pulse-frequency-modulated (PFM) control scheme combines the benefits of traditional PFM converters with the benefits of pulse-width-modulated (PWM) converters.Like PWM converters, the MAX764/MAX765/MAX766 are highly efficient at heavy loads. Yet because they are PFM devices, they use less than 120µA of supply current (vs.2mA to 10mA for a PWM device).

The input voltage range of MAX765 is 3V to 16V. The output voltage is preset at -5V (MAX764), -12V (MAX765), or -15V(MAX766); it can also be adjusted from -1V to -16V using two external resistors (Dual ModeTM). The maximum operating VIN - VOUT differential is 20V.

These MAX765 use miniature external components; their high switching frequencies (up to 300kHz) allow for lessthan 5mm diameter surface-mount magnetics. A standard 47µH inductor is ideal for most applications, so no magnetics design is necessary.

An internal power MOSFET makes the MAX764/MAX765/MAX766 ideal for minimum component count, low- andmedium-power applications. For increased output drive capability or higher output voltages, use the MAX774/MAX775/MAX776 or MAX1774, which drive an external power P-channel MOSFET for loads up to 5W.
