MAX7376

Features:

` 2.7V to 5.5V Operation
` Accurate Oscillator: 600kHz to 10MHz or 32kHz
` Reset Output Holds the C in Reset for 100s After Clock Startup
`±10mA Clock Output Drive Capability
`2% Initial Accuracy
` ±50ppm/°C Temperature Coefficient
`50% Duty Cycle
`5ns Output Rise and Fall Time
`Low Jitter: 160psP-P) at 8MHz (No PLL)
`3mA Operating Current (8MHz)
`13A Operating Current (32kHz)
`-40°C to +125°C Temperature Range


Application

`White Goods
`Automotive
`Consumer Products
`Appliances and Controls
`Handheld Products
`Portable Equipment
`Microcontroller (C) Systems

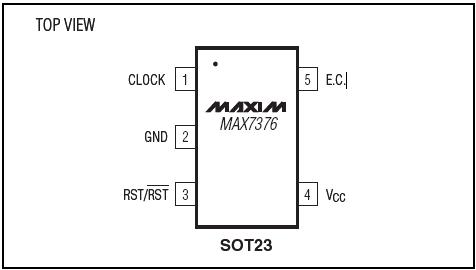

Pinout




Specifications

VCC to GND ......................................................................-0.3V to +6V
All Other Pins to GND .........................................-0.3V to (VCC + 0.3V)
CLOCK Current .........................................................................±10mA
Continuous Power Dissipation (T_A = +70°C)
5-Pin SOT23
(derate 7.1mW/°C above +70°C) .............................571mW (U5 - 2)
Operating Temperature Range ...............................-40°C to +135°C
Junction Temperature .............................................................+150°C
Storage Temperature Range...................................-60°C to +150°C
Lead Temperature (soldering, 10s).........................................+300°C

Description

The MAX7376 silicon oscillator with reset, is a replacement for ceramic resonators, crystals, crystal oscillator modules, and discrete reset circuits. The MAX7376 provides the primary clock source and reset function for microcontrollers in 3V, 3.3V, and 5V applications. The MAX7376 features a factory-programmed high-speed oscillator and a microprocessor (P) power-on-reset (POR) supervisor.

Unlike typical crystal and ceramic resonator oscillator circuits, the MAX7376 is resistant to vibration and EMI. The high-output-drive current and absence of highimpedance nodes make the oscillator less susceptible to dirty or humid operating conditions. With a wide operating temperature range as standard, the MAX7376 is a good choice for demanding home appliance, industrial, and automotive environments.

The MAX7376 is available in factory-programmed frequencies from 32.768kHz to 10MHz. See Table 2 for standard frequencies and contact the factory for custom frequencies.

The MAX7376 is available in a 5-pin SOT23 package. Refer to the MAX7382 data sheet for frequencies 10MHz. The MAX7376 standard operating temperature range is -40°C to +125°C. See the Applications Information section for the extended operating temperature range.
