MAS9181C

Features: · Rail to rail output stages· Octal 8-bit DACs on a single monolithic chip· Power supply range from +5 V to +12 V· -20°C to +85°C temperature range· 16-pin PDIL and SO package· Power-up resetApplication· Trimmer replacement· AGC/AFT or TVs and VCRs· Graphic equalizers· High resolution mo...

product image

MAS9181C Picture
See larger image
SeekIC No. : 004408300 Detail

MAS9181C: Features: · Rail to rail output stages· Octal 8-bit DACs on a single monolithic chip· Power supply range from +5 V to +12 V· -20°C to +85°C temperature range· 16-pin PDIL and SO package· Power-up re...

MAS9181C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAS9181C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Rail to rail output stages
· Octal 8-bit DACs on a single monolithic chip
· Power supply range from +5 V to +12 V
· -20°C to +85°C temperature range
· 16-pin PDIL and SO package
· Power-up reset


Application

· Trimmer replacement
· AGC/AFT or TVs and VCRs
· Graphic equalizers
· High resolution monitors


Pinout

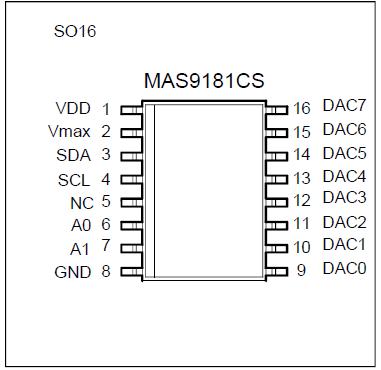

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Min
Max
Unit
Supply Voltage
VDD
-0.5
18
V
Supply current IDD
IDD
-10
40
mA
I2C-bus line voltage
V(3),V(4)
-0.5
5.9
V
Input voltage
Vin
-0.5
VDD+0.5
V
Output voltage
Vo
-0.5
VDD+0.5
V
Maximum current on any pin
Imax
10
mA
total power dissipation
Ptot
500
mW
Operating ambient
temperature range
Tamb
-20
+85
oC
Storage temperature range
Tstg
-65
+150
oC



Description

The MAS9181 comprises eight digital to analog converters (DACs) each controlled by a two-wire I2C bus. The DACs are individually programmed using an 8- bit word to select an output from one of 256 voltage steps. The maximum output voltage of all DACs is set by Vmax and the resolution is Vmax/256. At power-on all outputs are set to their lowest value. The I2C-bus slave receiver has 3 programmable address pins (2 for MAS9181 CS).
