M74HCT4052

Features: ` LOW POWER DISSIPATION: ICC = 4A (MAX.) at TA=25` LOGIC LEVEL TRANSLATION TO ENABLE TTL LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL` LOW ON RESISTANCE: 70 TYP. (VCC - VEE = 4.5V) 50 TYP. (VCC - VEE = 9V)` WIDE ANALOG INPUT VOLTAGE RANGE: ±6V` FAST SWITCHING: tpd = 13ns (TYP.) a...

product image

M74HCT4052 Picture
See larger image
SeekIC No. : 004407257 Detail

M74HCT4052: Features: ` LOW POWER DISSIPATION: ICC = 4A (MAX.) at TA=25` LOGIC LEVEL TRANSLATION TO ENABLE TTL LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL` LOW ON RESISTANCE: 70 TYP. (VCC - VEE = 4.5V)...

M74HCT4052 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M74HCT4052
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW POWER DISSIPATION:
    ICC = 4A (MAX.) at TA=25
` LOGIC LEVEL TRANSLATION TO ENABLE TTL LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL
` LOW "ON" RESISTANCE:
    70 TYP. (VCC - VEE = 4.5V)
    50 TYP. (VCC - VEE = 9V)
` WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
` FAST SWITCHING:
    tpd = 13ns (TYP.) at TA = 25
` LOW CROSSTALK BETWEEN SWITCHES
` HIGH ON/OFF OUTPUT VOLTAGE RATIO
` WIDE OPERATING SUPPLY VOLTAGE RANGE (VCC - VEE) = 2V TO 12V
` LOW SINE WAVE DISTORTION:
    0.02% at VCC - VEE = 9V
` COMPATIBLE WITH TTL OUTPUTS:
    VIH = 2V(MIN.) VIL = 0.8V (MAX.)
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4052

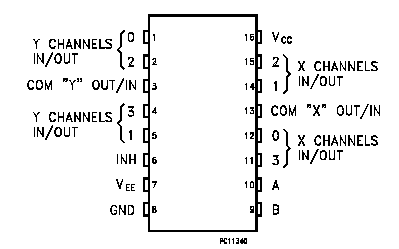

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7
V
VCC - VEE
 Supply Voltage
-0.5 to +13
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VI/O
 Switch I/O Voltage
VEE -0.5 to VCC + 0.5
V
ICK
 Control Input Diode Current
± 20
mA
IIOK
 I/O Diode Current
± 20
mA
IT
 Switch Through Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
PD
 Power Dissipation
500(*)
mW
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied

(*) 500mW at 65; derate to 300mW by 10mW/ from 65 to 85


Description

The M74HCT4052 is a dual four-channel analog MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate C2MOS technology and it is pin to pin compatible with the equivalent metal gate CMOS4000B series.

The M74HCT4052 contains 8 bidirectional and digitally controlled analog switches.

A built-in level shifting is included to allow an input range up to ±6V (peak) for an analog signal with digital control signal of 0 to 6V.

VEE supply pin of M74HCT4052 is provided for analog input signals. It has an inhibit (INH) input terminal to disable all the switches when high, compatible with TTL output level. For operation as a digital multiplexer/demultiplexer, VEE is connected to GND. A and B control inputs (TTL Compatible) select one channel out of four in each section.

All inputs are equipped with protection circuits against static discharge and transient excess voltage.
