M74HCT162

` HIGH SPEED :
   f<sub>MAX</sub> = 50 MHz (TYP.) at V<sub>CC</sub> = 4.5V
` LOW POWER DISSIPATION:
    I_CC =4A(MAX.) at T_A=25
` SYMMETRICAL OUTPUT IMPEDANCE:
    |I<sub>OH</sub>| = I<sub>OL</sub> = 4mA (MIN)
`BALANCED PROPAGATION DELAYS:
   t_PLH t_PHL
` COMPATIBLE WITH TTL OUTPUTS :
    V<sub>IH</sub> = 2V (MIN.) V<sub>IL</sub> = 0.8V (MAX)
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 162

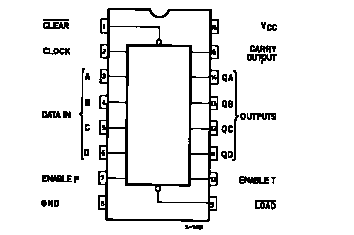

The M74HCT162 is an high speed CMOS SYNCHRONOUS BCD DECADE PRESETTABLE COUNTER fabricated with silicon gate C²MOS technology.

The CLOCK input is active on the rising edge. Both LOAD and CLEAR inputs are active LOW. Presetting is synchronous on the rising edge of the clock, the function is synchronous to the clock. Two enable inputs (TE and PE) and CARRY output are provided to enable easy cascading of counters, which facilities easy implementation of N-bit counters without using external gates.

All inputs of M74HCT162 are equipped with protection circuits against static discharge and transient excess voltage.
