M74HCT160

Features: ` HIGH SPEED : fMAX = 50 MHz (TYP.) at VCC = 4.5V` LOW POWER DISSIPATION: ICC =4A(MAX.) at TA=25` COMPATIBLE WITH TTL OUTPUTS : VIH = 2V (MIN.) VIL = 0.8V (MAX)` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 4mA (MIN)` BALANCED PROPAGATION DELAYS: tPLH tPHL` PIN AND FUNCTION COMPATIBLE WIT...

product image

M74HCT160 Picture
See larger image
SeekIC No. : 004407236 Detail

M74HCT160: Features: ` HIGH SPEED : fMAX = 50 MHz (TYP.) at VCC = 4.5V` LOW POWER DISSIPATION: ICC =4A(MAX.) at TA=25` COMPATIBLE WITH TTL OUTPUTS : VIH = 2V (MIN.) VIL = 0.8V (MAX)` SYMMETRICAL OUTPUT IMPEDAN...

M74HCT160 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M74HCT160
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH SPEED :
    fMAX = 50 MHz (TYP.) at VCC = 4.5V
` LOW POWER DISSIPATION:
    ICC =4A(MAX.) at TA=25
` COMPATIBLE WITH TTL OUTPUTS :
    VIH = 2V (MIN.) VIL = 0.8V (MAX)
` SYMMETRICAL OUTPUT IMPEDANCE:
    |IOH| = IOL = 4mA (MIN)
` BALANCED PROPAGATION DELAYS:
    tPLH  tPHL
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 160


Pinout

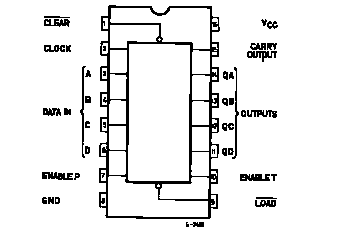

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VO
 DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
± 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
PD
 Power Dissipation
500(*)
mW
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied

(*) 500mW at 65; derate to 300mW by 10mW/ from 65 to 85


Description

The M74HCT160 is an high speed CMOS SYNCHRONOUS BCD DECADE PRESETTABLE COUNTER fabricated with silicon gate C2MOS technology.

The CLOCK input is active on the rising edge. BothLOAD and CLEAR inputs are active LOW. Presetting is synchronous on the rising edge of the clock, the function is cleared asynchronously. Two enable inputs (TE and PE) and CARRY output are provided to enable easy cascading of counters, which facilities easy implementation of
N-bit counters without using external gates.

All inputs of M74HCT160 are equipped with protection circuits against static discharge and transient excess voltage.
