M74HCT00

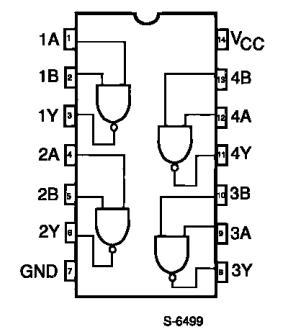

The M54/74HCT00 is a high speed CMOS QUAD 2-INPUT NAND GATE fabricated in silicon gate C2 MOS technology. It has the same highspeed per-formance of LSTTL combined with true CMOS low power consumption. The internal circuit is com-posed of 3 stages including buffer output, which en-ables high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

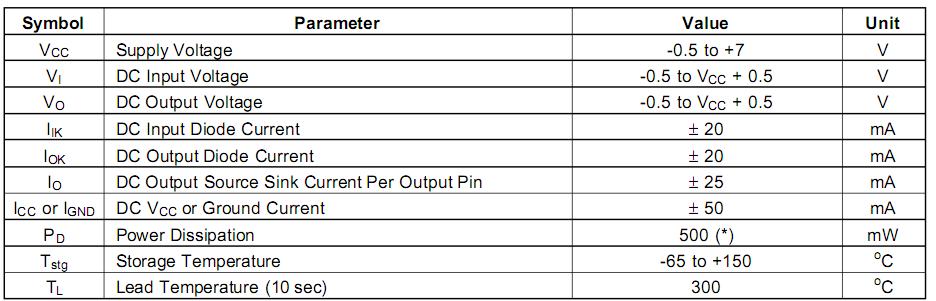

The M54/74HCT00  has input and output charac-teristics that are fully compatible with 54/74 LSTTL logic families. M54/74HC devices are designed to directly interface HSC2 MOS systems with TTL and NMOS components. They are also plug in replace-ments for LSTTL devices giving a reduction of power consumption.
