M74HC51

Features:

HIGH SPEED:
     t_PD = 11ns (TYP.) at V_CC = 6V
 LOW POWER DISSIPATION:
    I_CC = 1mA(MAX.) at T_A=25°C
 HIGH NOISE IMMUNITY:
    V_NIH =V_NIL = 28% V_CC (MIN.)
 SYMMETRICAL OUTPUT IMPEDANCE:
    |I_OH| = I_OL = 4mA (MIN)
 BALANCED PROPAGATION DELAYS:
    t_PLH  t_PHL
 WIDE OPERATING VOLTAGE RANGE:
     V_CC (OPR) = 2V to 6V
  PIN AND FUNCTION COMPATIBLE WITH
    74 SERIES 51

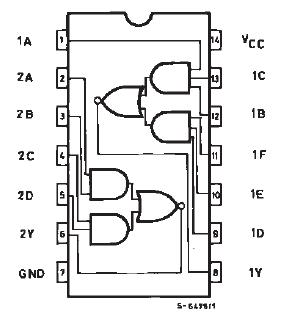

Pinout




Specifications



Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.5 to +7	V
VI	DC Input Voltage	-0.5 to VCC + 0.5	V
VO	DC Output Voltage	-0.5 to VCC + 0.5	V
IIK	DC Input Diode Current	± 20	mA
IOK	DC Output Diode Current	± 20	mA
IO	DC Output Current	± 25	mA
ICC or IGND	DC VCC or Ground Current	± 50	mA
PD	Power Dissipation	500(*)	mW
Tstg	Storage Temperature	-65 to +150
TL	Lead Temperature	(10 sec) 300

Description

The M74HC51 is an high speed CMOS DUAL 2 WIDE 2 INPUT AND/OR INVERT GATE fabricated with silicon gate C²MOS technology.It contains a 2-WIDE 2-INPUT AND/OR INVERT GATE and a 2-WIDE 3-INPUT AND/OR INVERT GATE.

The internal circuit of M74HC51is composed of 3 stages (2 INPUT) or 5 stages (3 INPUT) including buffer output, which enables high noise immunity and stable output.

All inputs are equipped with protection circuits against static discharge and transient excess voltage
