M74HC4316

Features: HIGH SPEED: tPD = 13ns (TYP.) at VCC =6VLOW POWER DISSIPATION: ICC =1µA(MAX.) at Vcc =5VLOW ON RESISTANCE: 120Ω TYP. (VCC -VEE = 2V) 50Ω TYP. (VCC -VEE = 4.5V) 35Ω TYP. (VCC -VEE = 9V)WIDE ANALOG INPUT VOLTAGE RANGE ± 6vLOW CROSSTALK BETWEEN SWITCHESFAST SWITCHI...

product image

M74HC4316 Picture
See larger image
SeekIC No. : 004407169 Detail

M74HC4316: Features: HIGH SPEED: tPD = 13ns (TYP.) at VCC =6VLOW POWER DISSIPATION: ICC =1µA(MAX.) at Vcc =5VLOW ON RESISTANCE: 120Ω TYP. (VCC -VEE = 2V) 50Ω TYP. (VCC -VEE = 4.5V) 35Ω...

M74HC4316 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M74HC4316
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 HIGH SPEED:
     tPD = 13ns (TYP.) at VCC =6V
 LOW POWER DISSIPATION:
     ICC =1µA(MAX.) at Vcc =5V
 LOW "ON" RESISTANCE:
    120Ω TYP. (VCC -VEE = 2V)
    50Ω TYP. (VCC -VEE = 4.5V)
    35Ω TYP. (VCC -VEE = 9V)
 WIDE ANALOG INPUT VOLTAGE
    RANGE ± 6v
 LOW CROSSTALK BETWEEN SWITCHES
 FAST SWITCHING
 SINE WAVE DISTORTION:
    0.020 at VCC -VEE =9V
 HIGH NOISE IMMUNITY:
    VNIH =VNIL =28%VCC (MIN.)
 PIN AND FUNCTION COMPATIBLE WITH
    74 SERIES 4316

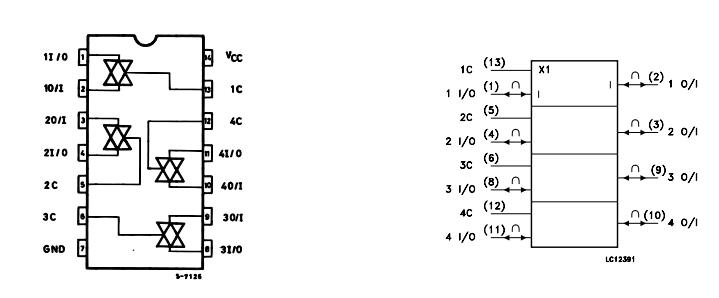

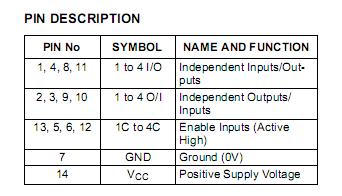

Pinout

Connection Diagram Connection Diagram




Specifications

Symbol
Parameter
Value
Unit
VCC
Supply Voltage
-0.5 to +7
V
VCC -VEE
 Supply Voltage
-0.5 to +13
V
VI
Control Input Voltage
-0.5 to VCC + 0.5
V
VI/O
Switch Input/Output Voltage
VEE -0.5 to VCC + 0.5
V
IOK
 Control Input DC Diode Current
± 20
mA
IIOK
 I/O DC Diode Current
± 20
mA
IO
 DC Output Source Sink Current Per Output Pin
± 25
mA
ICC or IGND
 DC VCC or Ground Current
± 50
mA
PD
Power Dissipation
500(*)
mW
Tstg
 Storage Temperature
-65 to +150
°C
TL
 Lead Temperature (10 sec)
300
°C




Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied
(*) 500mW at 65 °C; derate to 300mW by 10mW/°C from 65°Cto85°C




Description

The M74HC4316 is an high speed CMOS QUAD BILATERAL SWITCH fabricated with silicon gate C2MOS technology.

M74HC4316 has four independent analogue switches. Each switch has two input/output terminals (nI/O, nO/I) and an active high select input (nC).

When the enable input of M74HC4316 is high, all four analog switches are off. The supply voltage for the digital signals applied to VCC and GND must be whitin
the range 0 to 6 V. The voltage swing on the analogue Inputs/Outputs can be between VCC (positive limit) and VEE (negative limit). The voltage between VCC and VEE must not exceed 12V.

All inputs are equipped with protection circuits against static discharge and transient excess voltage.
