Product Details

Description

Features:

HIGH SPEED:
    tPD = 9ns (TYP.) at VCC = 6V
LOW POWER DISSIPATION:
    I_CC = 1µA(MAX.) at T_A=25°C
LOW "ON" RESISTANCE:
    RON = 60Ω TYP. AT V_CC = 9V, I_I/O = 100 µA
WIDE OPERATING VOLTAGE RANGE
    V_CC (OPR) = 2V TO 12V
SINE WAVE DISTORTION:
    0.042% at V_CC = 9Vpp , f = 1KHz
HIGH NOISE IMMUNITY:
    V_NIH = V_NIL = 28 % V_CC (MIN.)
PIN AND FUNCTION COMPATIBLE WITH
    74 SERIES 4016

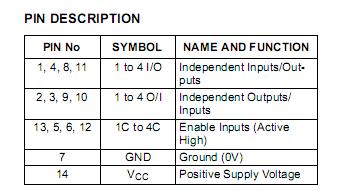

Pinout

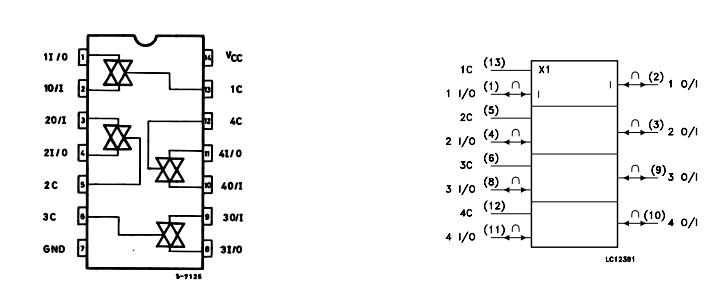

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	-0.5 to +13	V
V_IN	DC Input Voltage	-0.5 to V_CC + 0.5	V
V_I/O	DC Input/Output Voltage	-0.5 to V_CC + 0.5	V
I_OK	Control Input DC Diode Current	± 20	mA
I_IOK	I/O DC Diode Current	± 20	mA
I_O	DC Output Source Sink Current Per Output Pin	± 25	mA
I_CC or I_GND	DC V_CC or Ground Current	± 50	mA
P_D	Power Dissipation	500(*)	mW
T_stg	Storage Temperature	-65 to +150	°C
T_L	Lead Temperature (10 sec)	300	°C

Description

The M74HC4016 is an high speed CMOS QUAD BILATERAL SWITCH fabricated with silicon gate C²MOS technology.

The C input is provided to control the switch; the switch is on when the C input is held high and off when C is held low.
