Product Details

Description

Pinout

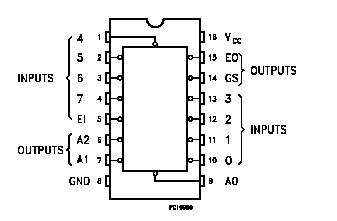

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	-0.5 to +7	V
V_I	DC Input Voltage	-0.5 to V_CC + 0.5	V
V_O	DC Output Voltage	-0.5 to V_CC+ 0.5	V
I_IK	DC Input Diode Current	± 20	mA
I_OK	DC Output Diode Current	± 20	mA
I_O	DC Output Current	± 25	mA
I_CC or I_GND	DC V_CC or Ground Current	± 50	mA
P_D	Power Dissipation	500(*)	mW
T_stg	Storage Temperature	-65 to +150	°C
T_L	Lead Temperature (10 sec)	300	°C

Description

The M74HC148 is an high speed CMOS 8 TO 3 LINE PRIORITY ENCODER fabricated with silicon gate C²MOS technology.

The M74HC148 encodes eight data lines to three-line (4-2-1) binary (octal). Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry. Data inputs are active at the low logic level.

M74HC148 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
