M74HC07

Features:

 HIGH SPEED: t_PD = 6ns (TYP.) at V_CC = 6V
 LOW POWER DISSIPATION: I_CC = 1mA(MAX.) at T_A=25°C
 HIGH NOISE IMMUNITY: V_NIH = V_NIL = 28 % V_CC (MIN.)
 WIDE OPERATING VOLTAGE RANGE: V_CC (OPR) = 2V to 6V
 PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 07

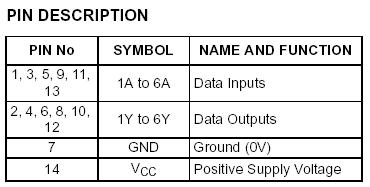

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.5 to +7	V
VI	DC Input Voltage	-0.5 to VCC + 0.5	V
VO	DC Output Voltage	-0.5 to VCC + 0.5	V
IIK	DC Input Diode Current	± 20	mA
IOK	DC Output Diode Current	± 20	mA
IO	DC Output Current	± 25	mA
ICC or IGND	DC VCC or Ground Current	± 50	mA
PD	Power Dissipation	500(*)	mW
Tstg	Storage Temperature	-65 to +150	°C
TL	Lead Temperature (10 sec)	300	°C

Description

   The M74HC07 is an high speed CMOS HEX OPEN DRAIN BUFFER fabricated with silicon gate C²MOS technology.

   The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output.

   All inputs are equipped with protection circuits against static discharge and transient excess voltage.
