Product Details

Description



Features:

• High performance digital echo circuit thanks to 16Kbit memory
• Built-in surround function which works Simulated Stereo for monaural source and Stereo Surround for stereo source
• ALC-equipped microphone amplifiers permit excessively high input. ALC operating voltage can be set as desired.
• 2 microphone volumes and echo effect volume are included
• Stereo microphone-line mixing amplifiers
• Karaoke entertainment functions such as vocal cut and automatic vocal support system
• Built-in current-control oscillation circuit
• Built-in automatic reset circuit activated with power on
• The use of AUDIO SW easy to control without Microcomputer
• 5V single power supply

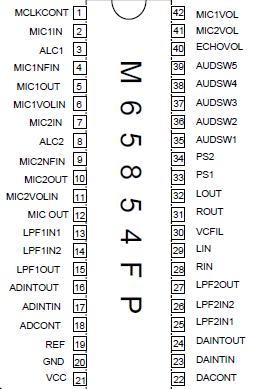

Pinout

Connection Diagram


Specifications

Symbol
parameter
Ratings
Unit
Vcc
 Supply Voltage
6.0
V
Vi
 Circuit current
-0.3~Vcc+0.3
V
Pd
 Input Voltage
1.1
W
Topr
 Operating temperature
-20to75
Tstg
 Storage Temperatare
-40to125



Description

The M65854 is a CMOS IC built-in Digital Echo function with microphone peripheral circuits for "Karaoke" equipment packed in a single chip.

It is suitable for "Karaoke" equipments such as Video CD Player, Mini Stereo, CD-Radio Cassette, TV or VCR.
