M65818AFP

Features: • Built-in 24bit Sampling Rate Converter.Input Signal Sampling Rate from 32KHz to 192KHz(24bit Maximum). 4 kinds of Digital Input Format.• Built-in L/R Independent Digital Gain Control.• Built-in Soft Mute Function with Exponential Approximate-Curve.• Corresponden...

product image

M65818AFP Picture
See larger image
SeekIC No. : 004406822 Detail

M65818AFP: Features: • Built-in 24bit Sampling Rate Converter.Input Signal Sampling Rate from 32KHz to 192KHz(24bit Maximum). 4 kinds of Digital Input Format.• Built-in L/R Independent Digital Gain...

M65818AFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M65818AFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in 24bit Sampling Rate Converter.
   Input Signal Sampling Rate
             from 32KHz to 192KHz(24bit Maximum).
   4 kinds of Digital Input Format.
• Built-in L/R Independent Digital Gain Control.
• Built-in Soft Mute Function with Exponential Approximate-Curve.
• Correspondence for SACD signal (64Fs 1bit,Fs=44.1KHz).
• Direct Output from Sampling Rate Converter.
• 3.3V and 5.0V Power Supply Operation at Output Clock, Input Data, and Control Signal Port


Application

• Master Clock
   Primary Clock: 256Fsi/512Fsi Secondary Clock: 1024Fso/512Fso
• Input Signal Format:
   MSB First Right Justified(16/20/24bit),MSB First Left Justified(24bit)
   LSB First Right Justified(24bit),I2S(24bit)
• Input Signal Sampling Rate from 32kHz to 192kHz.
• 8Fs Input Mode: Correspondence for External Digital Filter, Sampling Rate Converter Outputs.
• Gain Control Function:
   +30dB~ -dB(0.1dB Step until -96dB, -138dB Minimum)
• Third Order (16Fso:6bit/5bit,32Fso: 5bit)
• Sampling Rate Converter Output :MSB First Left justified /Lch,Rch Independent/32BCK


Pinout

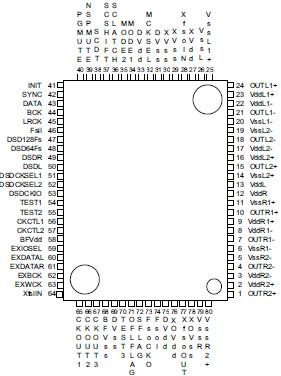

Connection Diagram


Specifications

Symbol
Parameter
Min.
Typ.
Max.
Unit
Conditions
PWMVdd
 supply voltage
-0.3
-
6.0
V
 5V XVdd, XOVdd, and Vdd (PWM).
BFVdd
-0.3
-
6.0
V
 5.0V System
DVdd
-0.3
-
4.2
V
 3.3V System
Vi(5.0V)
 Input Voltage Range
-0.3
-
Vdd+0.3V
V

Vi(3.3V)
-0.3
-
Vdd+0.3V
V

Pd
 Power Dissipation
600
mW
 Ta=60 °C
Tstg
 Storage temperature
-40
-
125




Description

The M65818AFP is a S-Master technique processor for digital amplifier enable to convert from multi liner-PCM digital
input signal to high precise switching-pulse digital output without analog processing.

The M65818AFP has built-in 24bit sampling rate converter and digital-gain-controller.

The M65818AFP enables to realize high precise (X`tal oscillation precision) fully digital amplifier systems combining
with power driver IC.
