M65831AP

Features: •Built-in input / output filters, A-D and D-A conver ters, and memory realize a delay system with only a single chip•Capable of composing low-noise and low-distortion delay system at low cost by ADM system (No=-92dB typ, THD=0.5% typ)•Control mode selections available f...

product image

M65831AP Picture
See larger image
SeekIC No. : 004406828 Detail

M65831AP: Features: •Built-in input / output filters, A-D and D-A conver ters, and memory realize a delay system with only a single chip•Capable of composing low-noise and low-distortion delay sys...

M65831AP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M65831AP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Built-in input / output filters, A-D and D-A conver ters, and memory realize a delay system with only a single chip
•Capable of composing low-noise and low-distortion delay system at low cost by ADM system
  (No=-92dB typ, THD=0.5% typ)
•Control mode selections available from 2 kinds : easy mode using parallel data and microcomputer mode using serial
data
•Sleep mode can be selected to stop IC functions
•Built-in automatic reset circuit

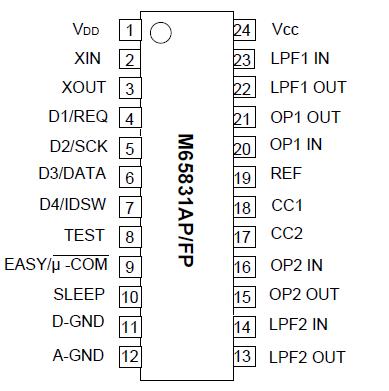

Pinout

Connection Diagram


Specifications

Symbol
parameter
Ratings
Unit
Vcc
 Supply Voltage
6.5
V
Icc
 Circuit current
100
mA
Pd
 Power dissipation M65831AP
1
W
M65831AFP
650
mW
Topr
 Operating temperature
-20to75
Tstg
 Storage Temperatare
-40to125
