M64897GP

Features: • 4 integrated PNP band drivers(Io=30mA, Vsat=0.2V typ@Vcc1 to 10V)• Built-in prescaler with input amplifier (f max=1.3GHz)• PLL lock/unlock status display out put(Built-in pull up resistor)• X'tal 4MHz is used to realize 3 type of tuning steps(Divider ratio 1/512...

product image

M64897GP Picture
See larger image
SeekIC No. : 004406792 Detail

M64897GP: Features: • 4 integrated PNP band drivers(Io=30mA, Vsat=0.2V typ@Vcc1 to 10V)• Built-in prescaler with input amplifier (f max=1.3GHz)• PLL lock/unlock status display out put(Built-...

M64897GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M64897GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4 integrated PNP band drivers(Io=30mA, Vsat=0.2V typ@Vcc1 to 10V)
• Built-in prescaler with input amplifier (f max=1.3GHz)
• PLL lock/unlock status display out put(Built-in pull up resistor)
• X'tal 4MHz is used to realize 3 type of tuning steps(Divider ratio 1/512, 1/640, 1/1024)
• Software compatible with M64894
• Built-in Power on reset system
• Small Package (SSOP)


Application

PC, TV, VCR tuners


Pinout

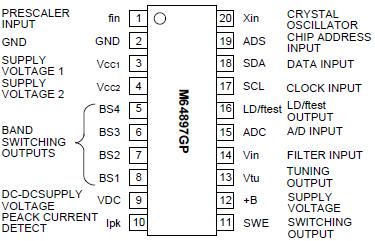

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc1
 Super voltage1 Pin3
6.0
V
Vcc2
 Super voltage2 Pin4
10.8
V
VI
 Input voltage Not to exceed VCC1
6.0
V
Vo
 Output voltage fREF output
6.0
V
VBSOFF
 Voltage applied when the band output is
OFF
10.8
V
IBSON
 Band output current per 1 band output circuit
40.0
mA
tBSON
 ON the time when the band output is ON 40mA per 1 band output circuit
3circuits are pn at same time.
10
sec
Pd
 Power dissipation Ta=75°C
255
mW
Topr
 Operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+125
°C



Description

The M64897GP is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR/PC using I2C BUS control.It contains the prescaler with operating up to1.3GHz, 4 band drivers and DC-DC converter for Tuning voltage.
