M64884FP

Features: • Low power current Icc=24mA. (@Vcc=3.0V,at TX/RX VCOand 2-multiple circuit output current=2mA setting)• Built-in 2-modulus prescaler. -input f requency --- TX:350~500MHz,RX:700~1000MHz. -input sensitiv ity --- -15 ~ -5dBm.• Built-in buf f er-Tr f or oscillation circuit...

product image

M64884FP Picture
See larger image
SeekIC No. : 004406778 Detail

M64884FP: Features: • Low power current Icc=24mA. (@Vcc=3.0V,at TX/RX VCOand 2-multiple circuit output current=2mA setting)• Built-in 2-modulus prescaler. -input f requency --- TX:350~500MHz,RX:70...

M64884FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M64884FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power current Icc=24mA. (@Vcc=3.0V,at TX/RX VCOand 2-multiple circuit output current=2mA setting)
• Built-in 2-modulus prescaler.
   -input f requency --- TX:350~500MHz,RX:700~1000MHz.
   - input sensitiv ity --- -15 ~ -5dBm.
• Built-in buf f er-Tr f or oscillation circuit in the TX and RX.
• Built-in 2-multiple circuit f or transmission output.
• Built-in double balance ty pe mixer f or the 1st IF.
• Rated current output ty pe charge pump. Output current can be set with serial data. (100,300,500,700A)
• Built-in B-E Colpitts ty pe oscillation circuit f or standard oscillation.
• Software is compatible with M64084AGP


Application

900MHz analog cordless telephone (ISM band)


Pinout

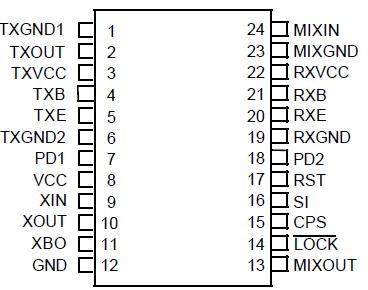

Connection Diagram


Specifications

Symbol
Parameter
Test Condition
Ratings
Unit
Remarks
Min. Max.
Vcc Supply voltage
 GND=0V

-0.3

4.5
V

Vo Output Voltage LOCK, MIXOUT

0

4.5

V


Io Output Current TXE, RXE, TXOUT

0

6.0

mA


Vi Input voltage SI, CPS, RST

-0.3

4.5
V

Ii Input Current LOCK, GND=0V

0

1.0
mA

Pd Power Consumption Ta=85, Tj=125

232
mW
 Package Allowable Power
Tj Junction Temperature

125


Topr Operating Ambient Voltage

-30

85


Tstg Storage Ambient Voltage

-40

125




Description

The M64884FP is a 2-sy stem 1-chip PLL f requency synthesizer IC designed of Analog cordless telephone f or North
America (ISM band) that can directly enter signal up to 500-MHz in the TX and up to 1GHz in the RX.

Adoption of high perf ormance Bi-CMOS process enables low power consumption ty pe 2-modulus prescaler to be built in the IC to directly signal enter up to 500MHz in the TX and up to 1GHz in the RX.This IC also contains VCO oscillation-Tr in the TX and RX,2-multiple circuit f or transmission output and double balance ty pe mixer f or the 1st intermediate f requency (1st IF).
