M64895BFP

Features: • 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)• Built-in high-withstanding voltage tuning Amplifier• Low power dissipation (Icc=20mA, Vcc=5V)• Built-in prescaler with input amplifier (Fmax=1.3GHz)• PLL lock/unlock status display out put...

product image

M64895BFP Picture
See larger image
SeekIC No. : 004406788 Detail

M64895BFP: Features: • 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)• Built-in high-withstanding voltage tuning Amplifier• Low power dissipation (Icc=20mA, Vcc=5V)•...

M64895BFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M64895BFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)
• Built-in high-withstanding voltage tuning Amplifier
• Low power dissipation (Icc=20mA, Vcc=5V)
• Built-in prescaler with input amplifier (Fmax=1.3GHz)
• PLL lock/unlock status display out put
• (Built-in pull up resistor )
• I2C bus control (write mode only)
• X'tal 4MHz is used to realize 3 type of tuning steps(Division ratio 1/512, 1/640, 1/1024)
• Programmable chip address
• Small package (16Pin SOP/SSOP)


Application

TV, VCR tuners


Pinout

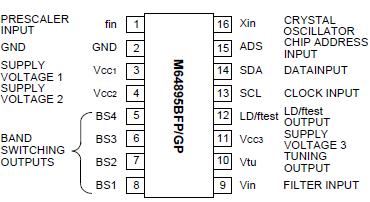

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc1
 Super voltage1 Pin3
6.0
V
Vcc2
 Super voltage2 Pin4
14.4
V
Vcc3
 Super voltage3 Pin11
36.0
V
VI
 Input voltage Not to exceed VCC1
6.0
V
Vo
 Output voltage Pin16
6.0
V
VBSOFF
 Voltage applied when the band output is
OFF		 per 1 band output circuit
50mA per 1 band output
14.4
V
IBSON
 Band output current circuit
50.0
mA
tBSON
 ON the time when the band output is ON 3circuits are pn at same time
10
sec
Pd
 Power dissipation Ta=75°C
470
mW
Topr
 Operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+125
°C



Description

The M64895B is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR using I2C BUS control. It contains the prescaler with operating up to1.3GHz, 4 band drivers and tuning Amplifier for direct tuning. Built-in 4 band drivers.
