M64893GP

Features: • 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)• Built-in Op. Amp for direct tuning voltage output (33V)• Low power dissipation (Icc=20mA, Vcc1=5V)• Built-in prescaler with input amplifier (Fmax=1.3GHz)• PLL lock/unlock status display ou...

product image

M64893GP Picture
See larger image
SeekIC No. : 004406785 Detail

M64893GP: Features: • 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)• Built-in Op. Amp for direct tuning voltage output (33V)• Low power dissipation (Icc=20mA, Vcc1=5V)&#...

M64893GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M64893GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4 integrated PNP band drivers(Io=40mA,Vsat=0.2V typ@Vcc1 to 13.2V)
• Built-in Op. Amp for direct tuning voltage output (33V)
• Low power dissipation (Icc=20mA, Vcc1=5V)
• Built-in prescaler with input amplifier (Fmax=1.3GHz)
• PLL lock/unlock status display out put(Built-in pull up resistor )
• X'tal 4MHz is used to realize 1 type of tuning steps(Division ratio 1/640)
• Serial data input. (3 wire bus )
• Built-in Power on reset system
• Small package (SOP/SSOP)


Application

TV, VCR tuners


Pinout

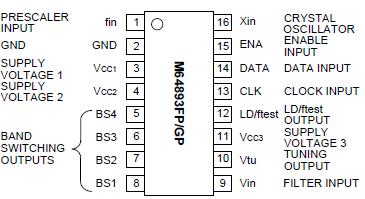

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc1
 Super voltage1 Pin3
6.0
V
Vcc2
 Super voltage2 Pin4
14.4
V
Vcc3
 Supply voltage 3 Pin11
36.0
V
VI
 Input voltage Not to exceed VCC1
6.0
V
Vo
 Output voltage LD output
6.0
V
VBSOFF
 Voltage applied when the band output is
OFF
14.4
V
IBSON
 Band output current per 1 band output circuit
50.0
mA
tBSON
 ON the time when the band output is ON 50mA per 1 band output circuit
3circuits are pn at same time.
10
sec
Pd
 Power dissipation Ta=+75 °C
470
mW
Topr
 Operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+125
°C



Description

The M64893 is a semiconductor integrated circuit consisting of PLL frequency synthesizer for TV/VCR using Bip process.

It contains the prescaler with operating up to 1.3GHz, 4 band drivers and Op. Amp for direct tuning.
